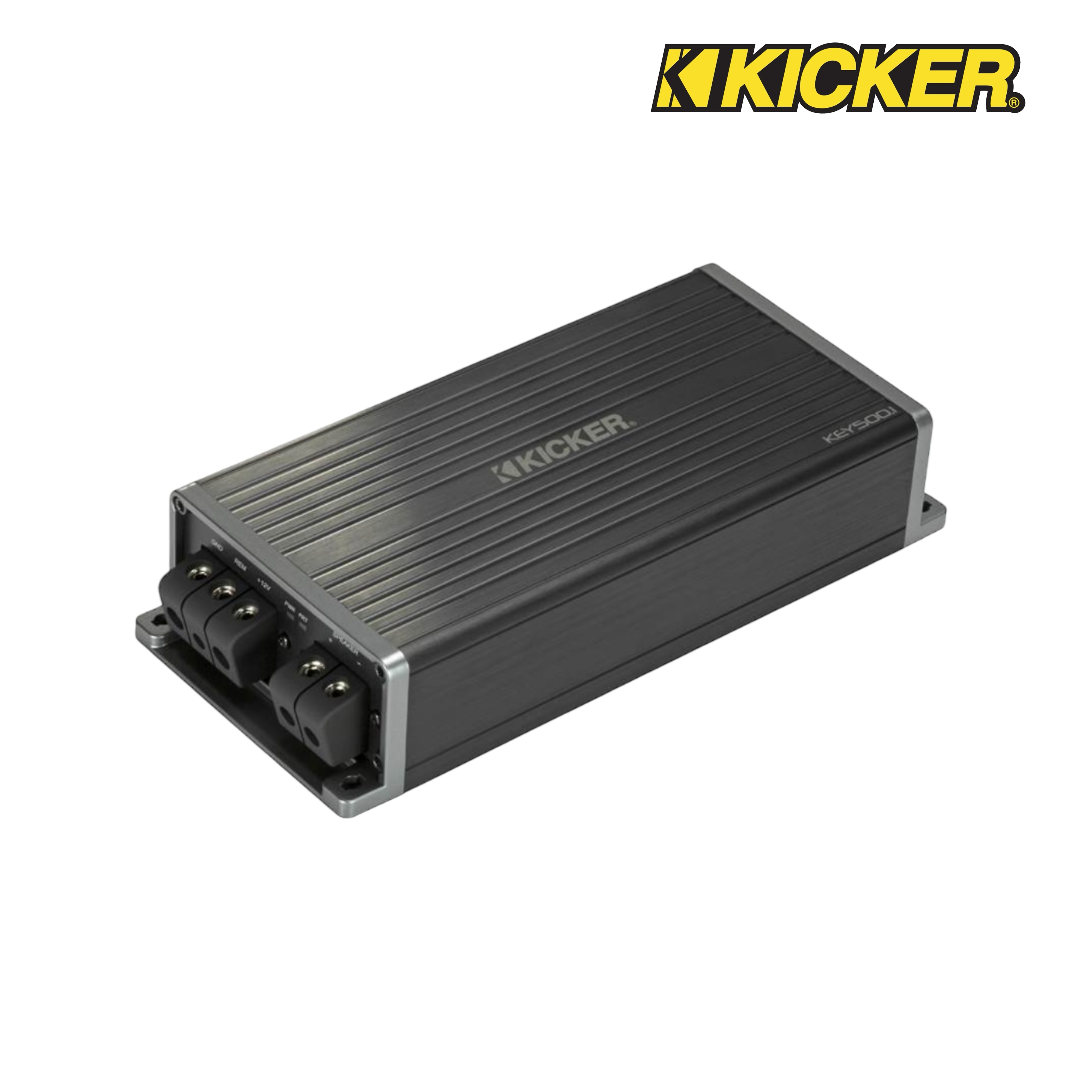

Compact mono subwoofer amplifier with automatic tuning DSP — 500 watts RMS at 1 ohm 47KEY500.1

• mono subwoofer amplifier

  • 150 watts RMS x 1 at 4 ohms

  • 300 watts RMS x 1 at 2 ohms

  • 500 watts RMS x 1 at 1 ohm

• Class D amp technology

• KEY Auto Setup customizes the signal for your stereo system

  • test tones available from Kicker.com

  • automatic adjustments include bass restoration and EQ

• variable low-pass filter (40-160 Hz, 24 dB/octave)

• variable subsonic filter (10-40 Hz, 24 dB/octave)

More Info:

• preamp and speaker-level inputs

  • DC offset sensing turn-on with speaker-level inputs

• Radio-Detect circuit supplies speaker load for receiver to sense

• wiring, fuse, and hardware not included with amplifier

  • 8-gauge power and ground leads and a 60-A fuse recommended

• dimensions: 8-3/16"W x 1-3/4"H x 3-11/16"D

⚙️ Performance Specifications

• RMS Power Output (Watts x Channels): 150 x 1

• Peak Power Output (Watts x Channels): 500 x 1

• Power @ 2 Ohms: 300 x 1

• Power @ 1 Ohm: 500 x 1

• Minimum Impedance (Unbridged): 1 ohm

• Frequency Response: 10 – 160 Hz

• THD @ Rated RMS Power: 1%

• Signal-to-Noise Ratio: 90 dB

• Input Voltage: 14.4V

🎛️ Features

• Amplifier Class: D

• Built-in DSP: Yes

• Remote Control: Optional

• Low-Pass Crossover Frequency: 40 – 160 Hz

• Low-Pass Slope: 24 dB/octave

• Bass Boost: 0 – 6 dB

• Bass Boost Frequency: 40 Hz

• High-Pass Crossover: N/A

• Fan Cooled: No

• Fuse Rating: 60 A

• Speaker-Level Inputs: Yes

• Preamp Outputs: No

📏 Dimensions

• Width: 8-3/16"

• Height: 1-3/4"

• Depth: 3-11/16"

• Mono amplifier

• 12" Input harness (4-pin Molex to female RCA)

• Four 1" screws

• Two 12" wire-ties

• 3mm Allen key

• Quickstart guide

• Kicker Tech Support information
