XED Series 4-Channel Full Range Class-D 2Ω 90W X 4 - XED4004DV2

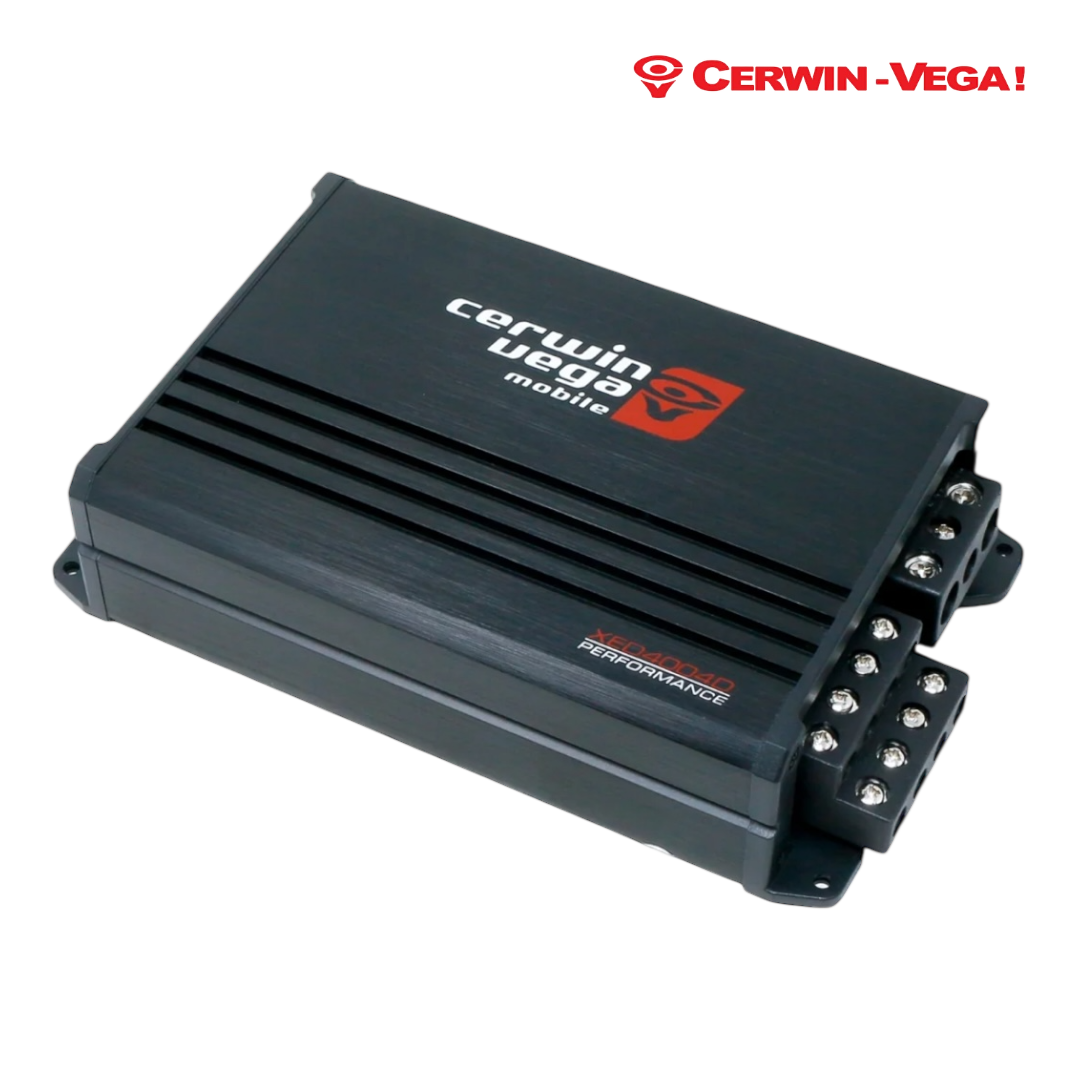

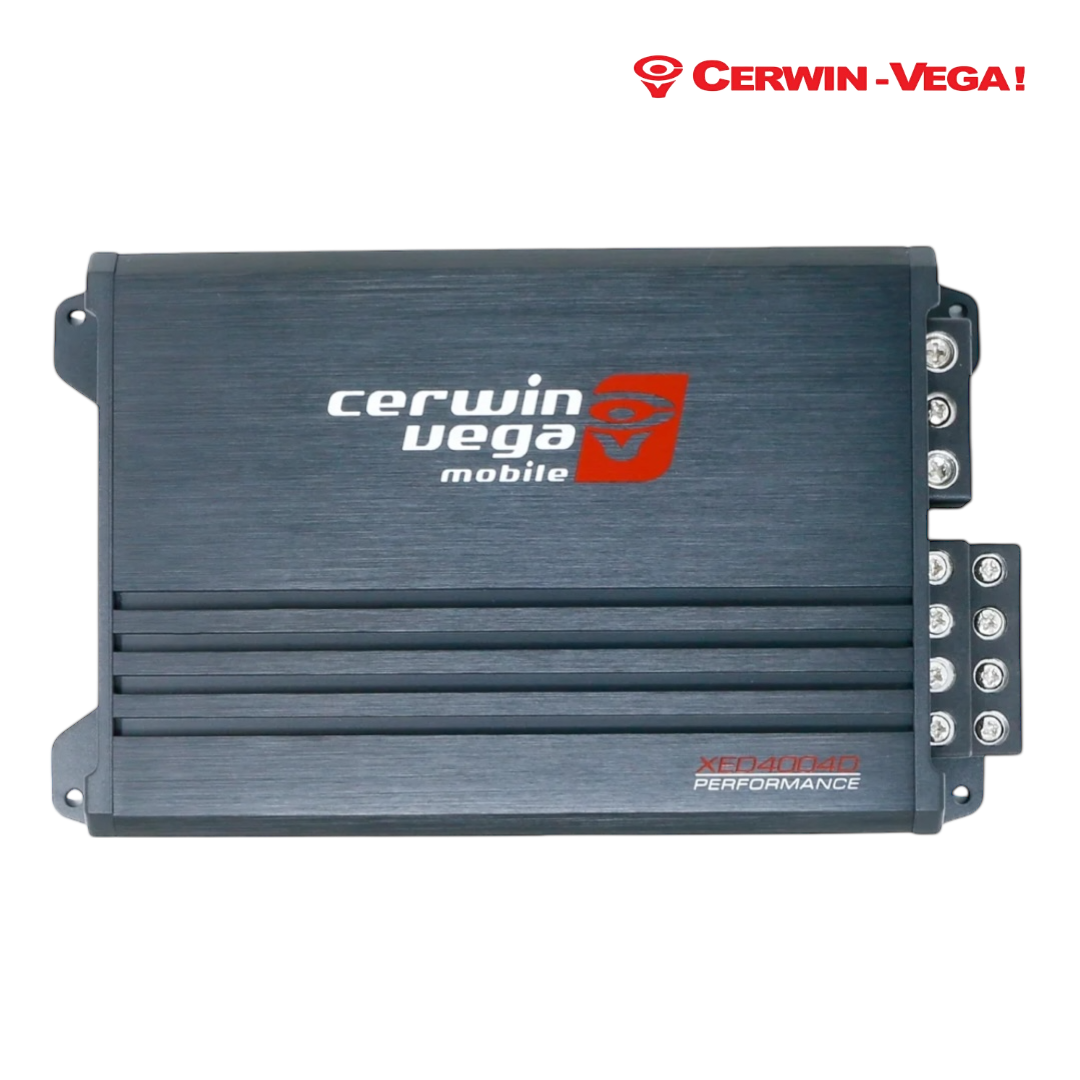

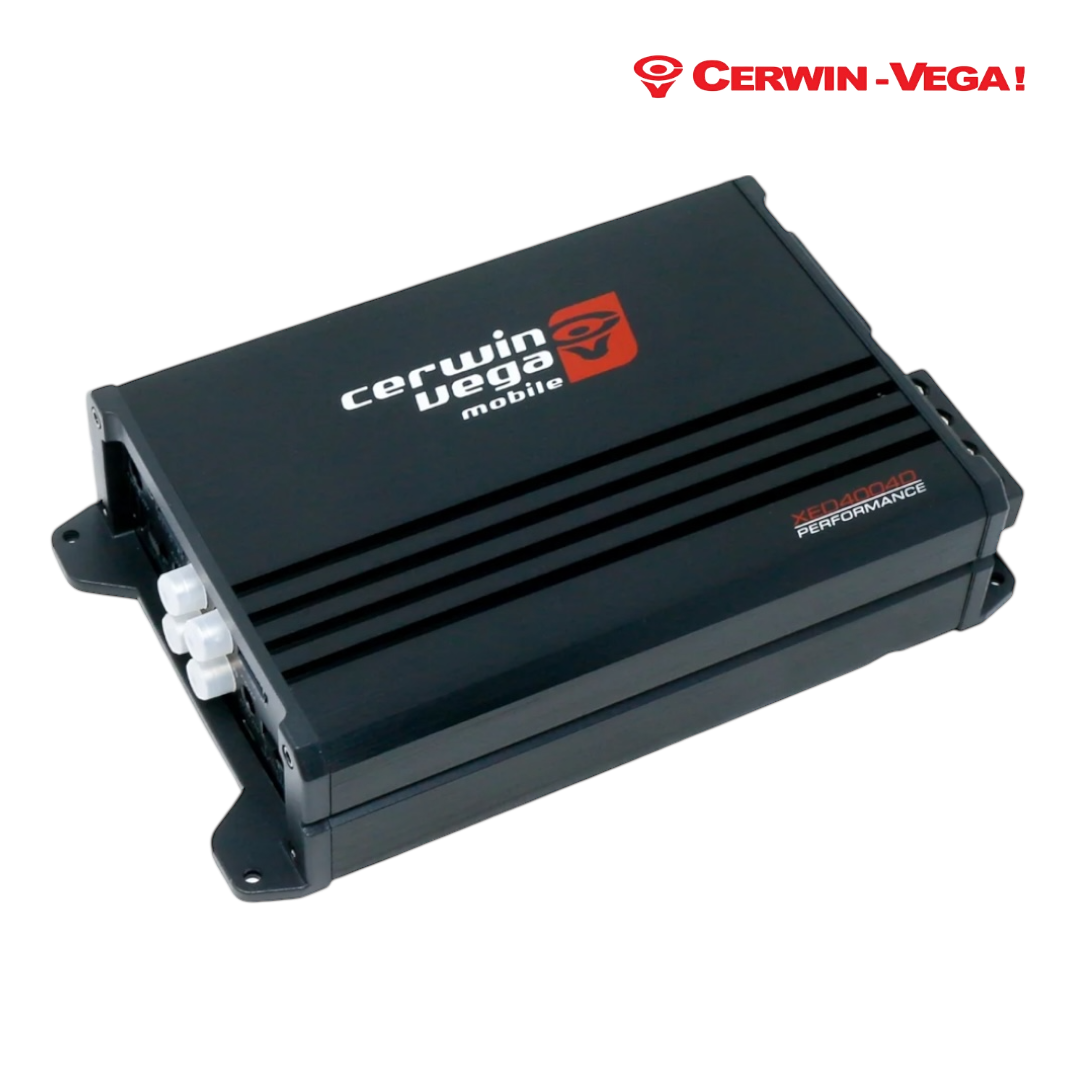

Cerwin-Vega XED4004D – 4-Channel Full-Range Class-D Amplifier
Unleash powerful, clean sound with the Cerwin-Vega XED4004D. Designed for performance and durability, this Class-D amp features a lightweight aluminum chassis for efficient cooling, premium components for reliability, and serious output for deep bass, crisp highs, and clear mids. Built to handle demanding setups with ease—Xtreme Energy, unleashed.
Cerwin-Vega XED4004D – 4-Channel Full-Range Class-D Amplifier
Unleash powerful, clean sound with the Cerwin-Vega XED4004D. Designed for performance and durability, this Class-D amp features a lightweight aluminum chassis for efficient cooling, premium components for reliability, and serious output for deep bass, crisp highs, and clear mids. Built to handle demanding setups with ease—Xtreme Energy, unleashed.
Cerwin-Vega XED4004D – 4-Channel Full-Range Class-D Amplifier
Unleash powerful, clean sound with the Cerwin-Vega XED4004D. Designed for performance and durability, this Class-D amp features a lightweight aluminum chassis for efficient cooling, premium components for reliability, and serious output for deep bass, crisp highs, and clear mids. Built to handle demanding setups with ease—Xtreme Energy, unleashed.
-
4-Channel Full Range Digital Amplifier
Power Rating (RMS)
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 60W X 4
RMS POWER PER CHANNEL 2Ω 90W X 4Power Supply
Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4Ω): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Low Level Input: 250mV-10.0V
High Level Input: 1.3V~>20.0V
Input Impedance
Low Level Input: 10KΩ
High Level Input: 100KΩ
Output Stage
Output Impedance: 2Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-30KHz
Crossover (1-12dB/Oct)
Variable High-Pass: 35Hz-250Hz
Variable low-Pass: 35Hz-250Hz
Fuse Rating (Inside)
30A
Dimensions
Length x Width x Height: 6.3”x4.7”x1.8” (160mm x 120mm x 46.5 mm)
FEATURES

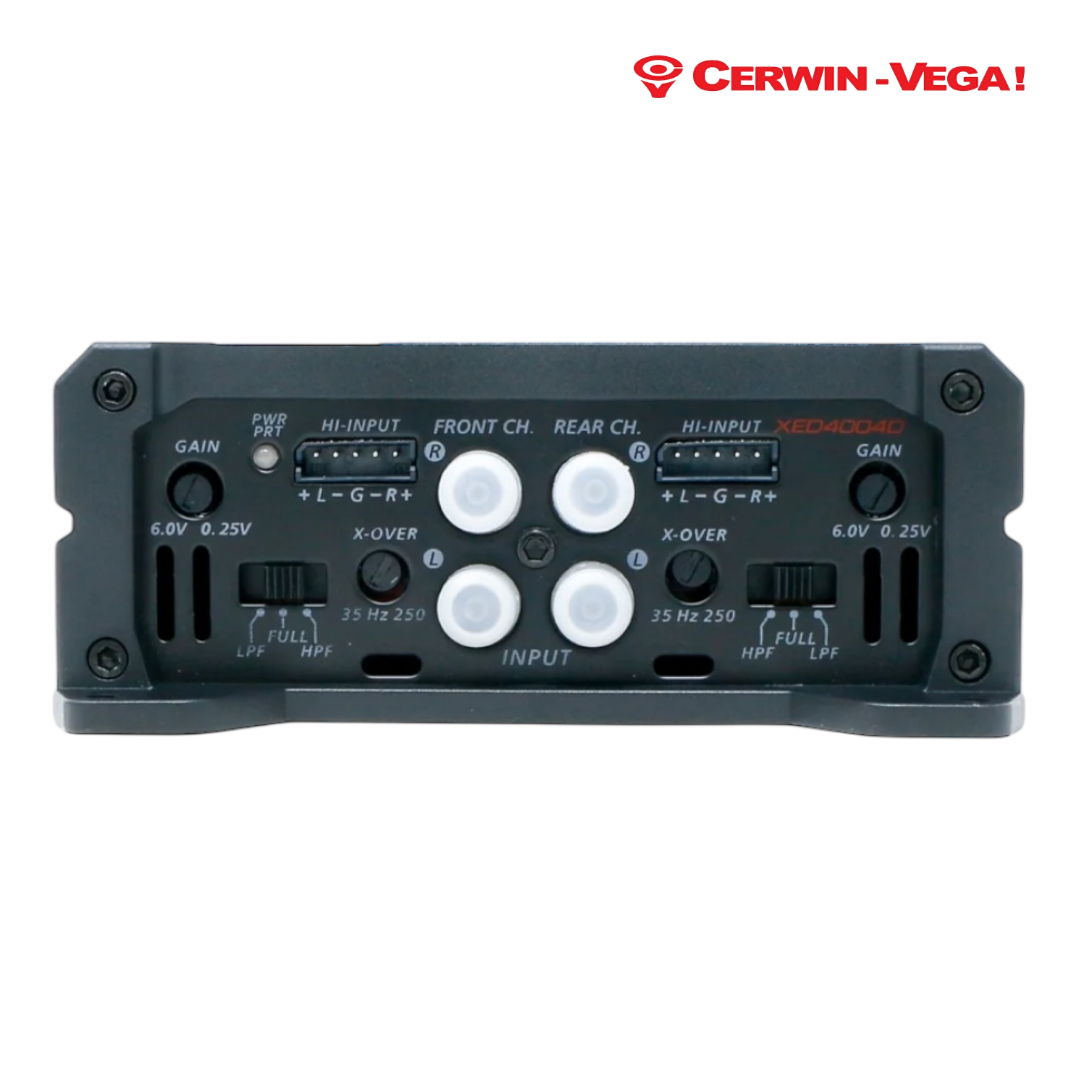

LED Power/Protect Light Indicator
Selectable X-Over: High Pass/Flat/Low Pass
