2-DIN 6.8" WIRELESS AA&CP Excelon Reference DMX958XR

General features:

• digital multimedia player with AM/FM tuner

• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

• 6.75" electrostatic capacitive touchscreen HD display

• HD Radio tuner built-in

• LDAC Bluetooth streaming capability for select Android devices

• Waze-ready with Apple CarPlay or Android Auto

• electronic viewing angle display adjustment

• fits double-DIN (4" tall) dash openings

Smartphone features:

• wired and wireless Android Auto compatible

  • compatible with Google Assistant voice control when using Android Auto

• wired and wireless Apple CarPlay compatible

  • Siri voice control for select iPhones

• wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)

• wireless mirroring for select Android devices

• built-in Bluetooth with dual phone connection for hands-free calling and music streaming

• rapid Android charging via USB port

Audio/visual features:

• 13-band graphic EQ

• time alignment

• Drive EQ and digital signal processing

• 3-way crossover

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

• compatible with Kenwood CMOS-740HD HD backup camera

• inputs: rear USB-C input, three camera inputs (HD rear, front, side), rear analog A/V inputs (can be converted to 4th cam input)

• outputs: rear video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

• built-in amplifier (22 watts RMS/50 peak x 4 channels)

• works with iDatalink Maestro RR or RR2 modules

  • retains factory features in a wide selection of vehicles

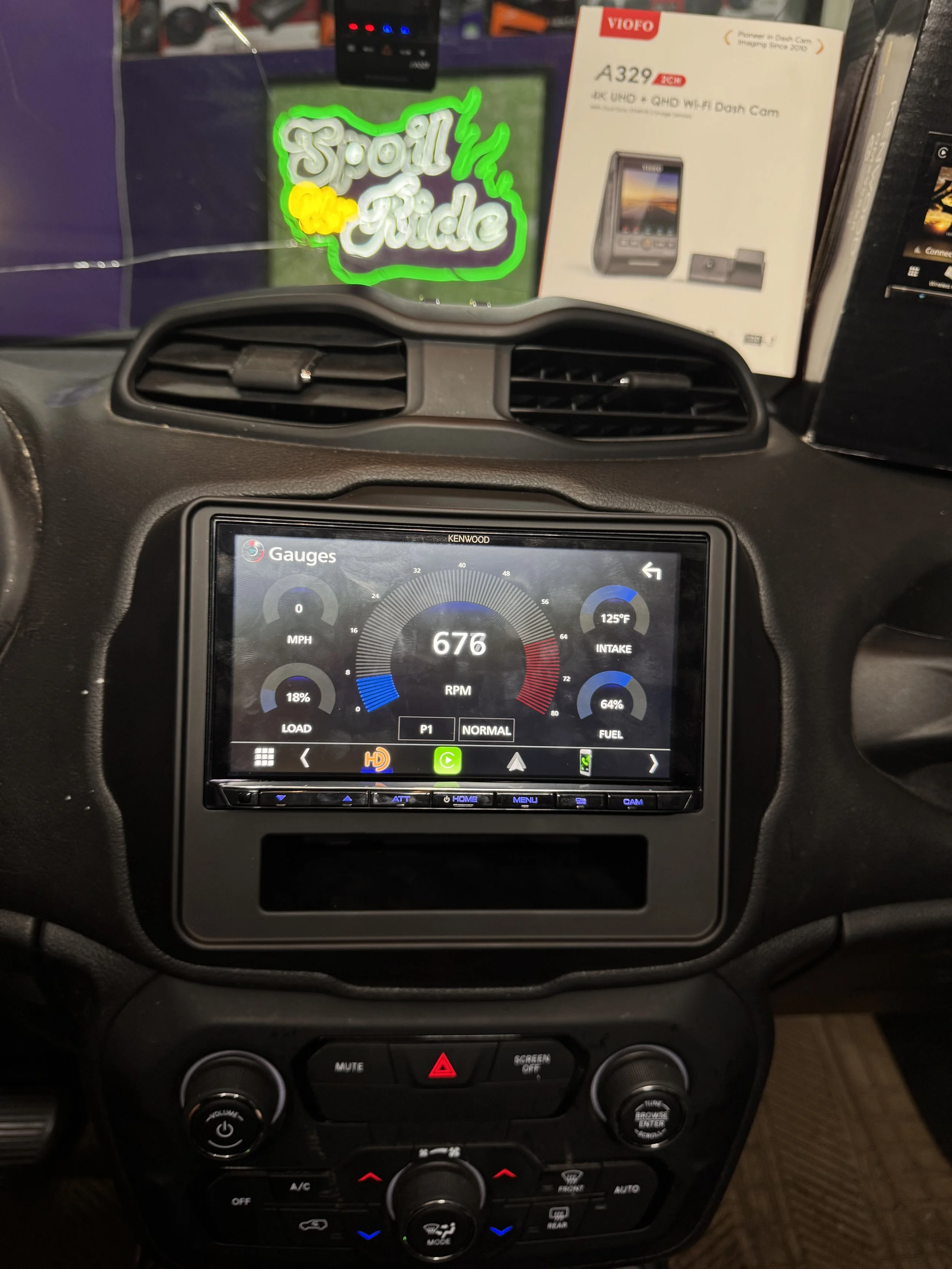

  • displays engine performance data on touchscreen

General

• RMS Power (Manufacturer): 22 watts

• RMS Power (CTA-2006): Not specified

Expandability

• AUX Input: Mini (rear)

• Audio/Video Input: Composite + Mini (rear), HDMI (rear)

• USB Input: Rear (USB-C)

• USB Port Power: 3A

• Backup Camera Input: Yes

• Second Camera Input: Yes

• Camera Input (Marine): Not applicable

• Preamp Outputs: 6-channel

• Subwoofer Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: Via USB

Smartphone Control

• iPhone Compatibility: iPhone 6S and newer

• Apple CarPlay: Wired & Wireless

• Siri Control: Available via CarPlay only

• Android Auto: Wired & Wireless

• Alexa Voice Control: No

Tuner

• FM Sensitivity: 9.3 dBf

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System (RDS): Yes

File Playback

• Supported Music Formats: MP3, WMA, AAC, FLAC, WAV

• High-Resolution Audio: WAV/FLAC up to 24-bit/192kHz

Navigation

• Built-In Navigation: No

• Navigation via Smartphone:

  • iOS: Apple Maps, Google Maps, Waze

  • Android: Google Maps, Waze

Connectivity & Features

• Bluetooth: Built-in (v5.0)

• SiriusXM Ready: Yes (SiriusXM 3.0)

• HD Radio: Yes

• Video Screen: Yes

• Screen Size: 6.75 inches

• Screen Type: Capacitive (Swipeable)

• Preamp Voltage: 5V

• Display Color: Not specified

• Key/Button Color: Variable

• EQ Bands: 13-band graphic EQ

• Wireless Remote: Optional

• Steering Wheel Control Compatible: Adapter required

Physical Dimensions

• Chassis Depth: 4.085 in

• Chassis Width: 7.075 in

• Chassis Height: 3.925 in

• Digital multimedia receiver w/ integrated 6.75" monitor (15A fuse)

• Wiring harness

• Mounting sleeve (pre-installed)

• Trim-ring

• USB-C to USB-A adapter

• 40" USB-C extension cable

• GPS antenna (attached 11.5' cable terminated by a proprietaery connector)

• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)

• Self-adhesive pad

• 6 Pan-head ISO-mount screws (M5x8mm)

• 6 Flat-head ISO-mount screws (M5x8mm)

• USB/HDMI connector bracket (pre-installed)

• 2 Removal tools

• Quick Start Guide

• Warranty Information
