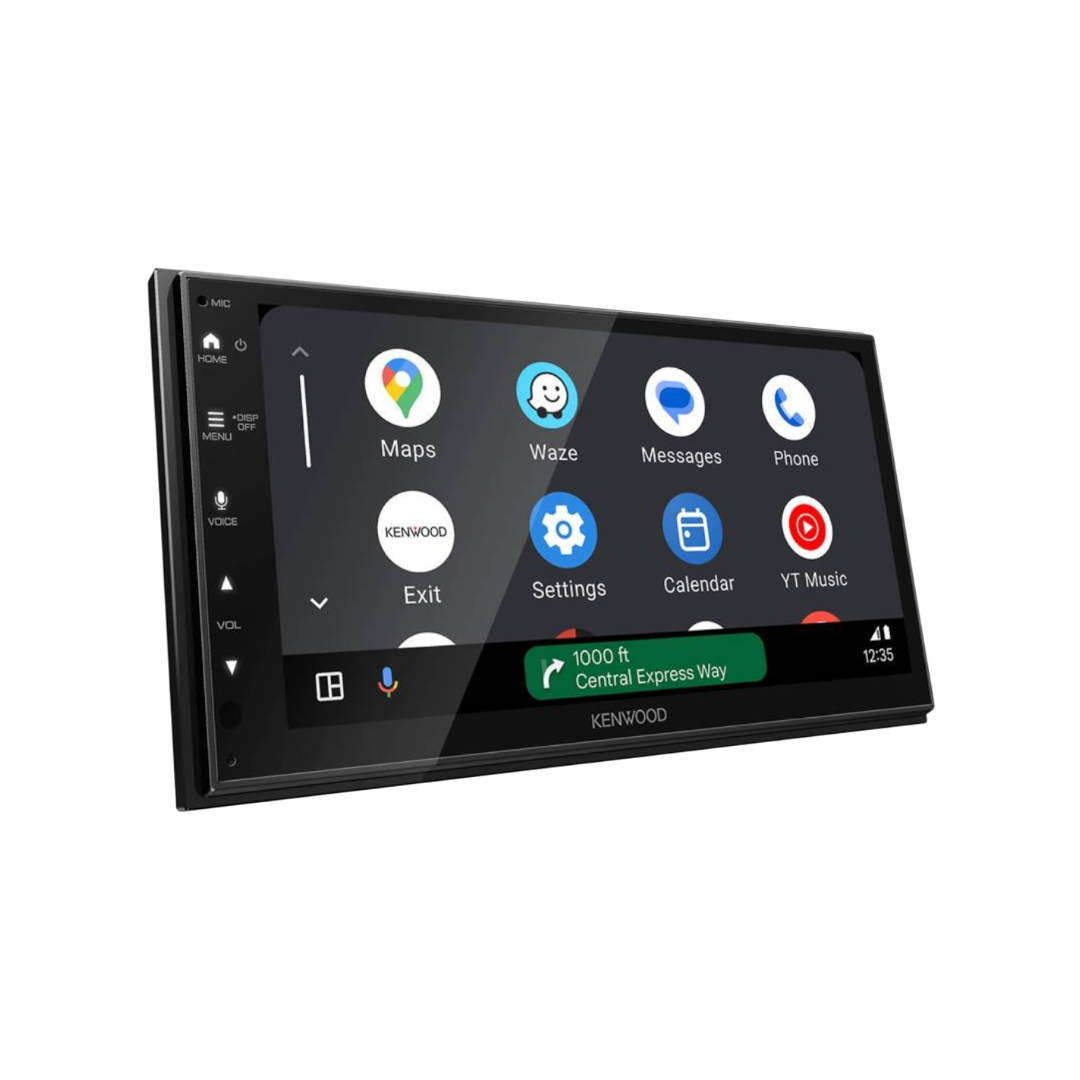

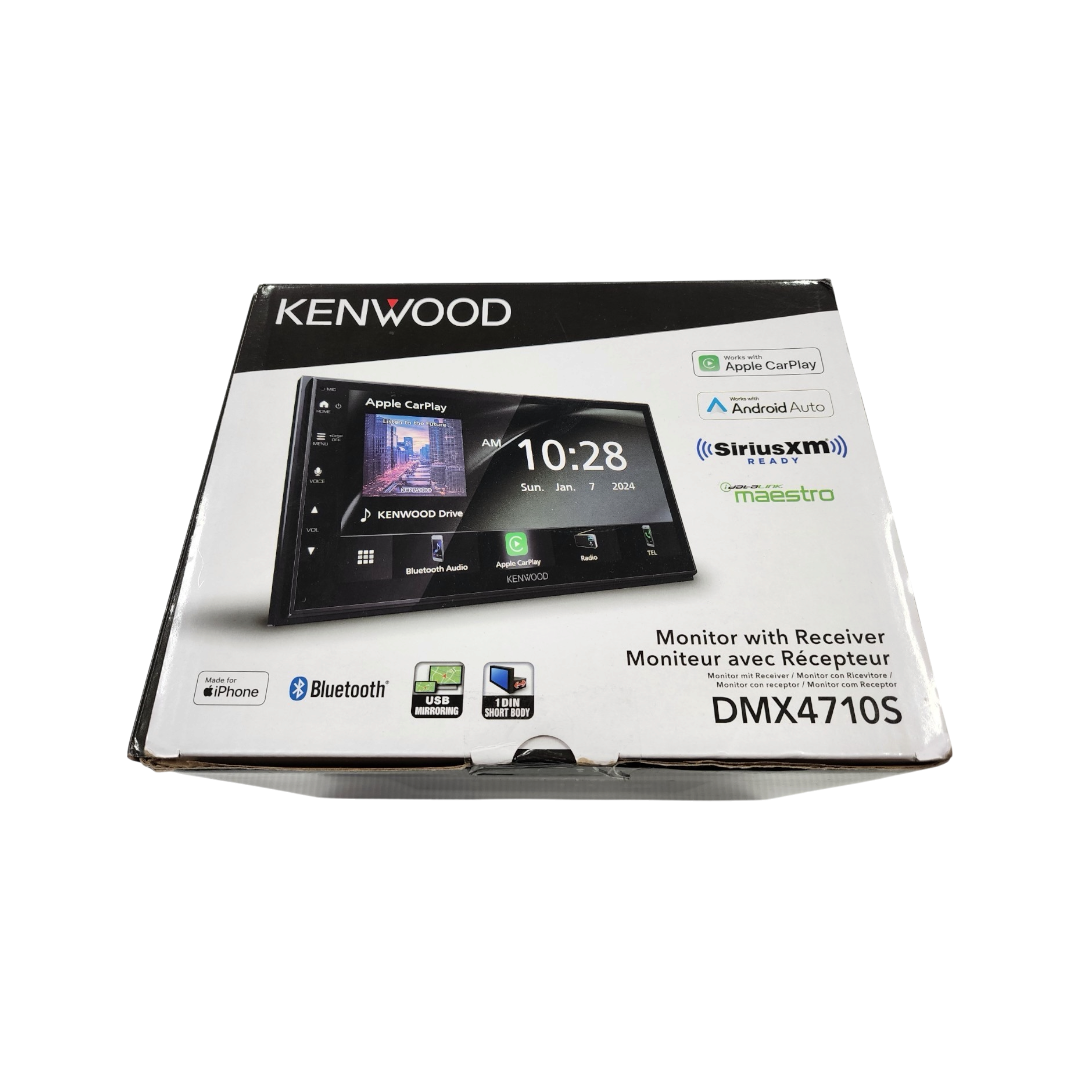

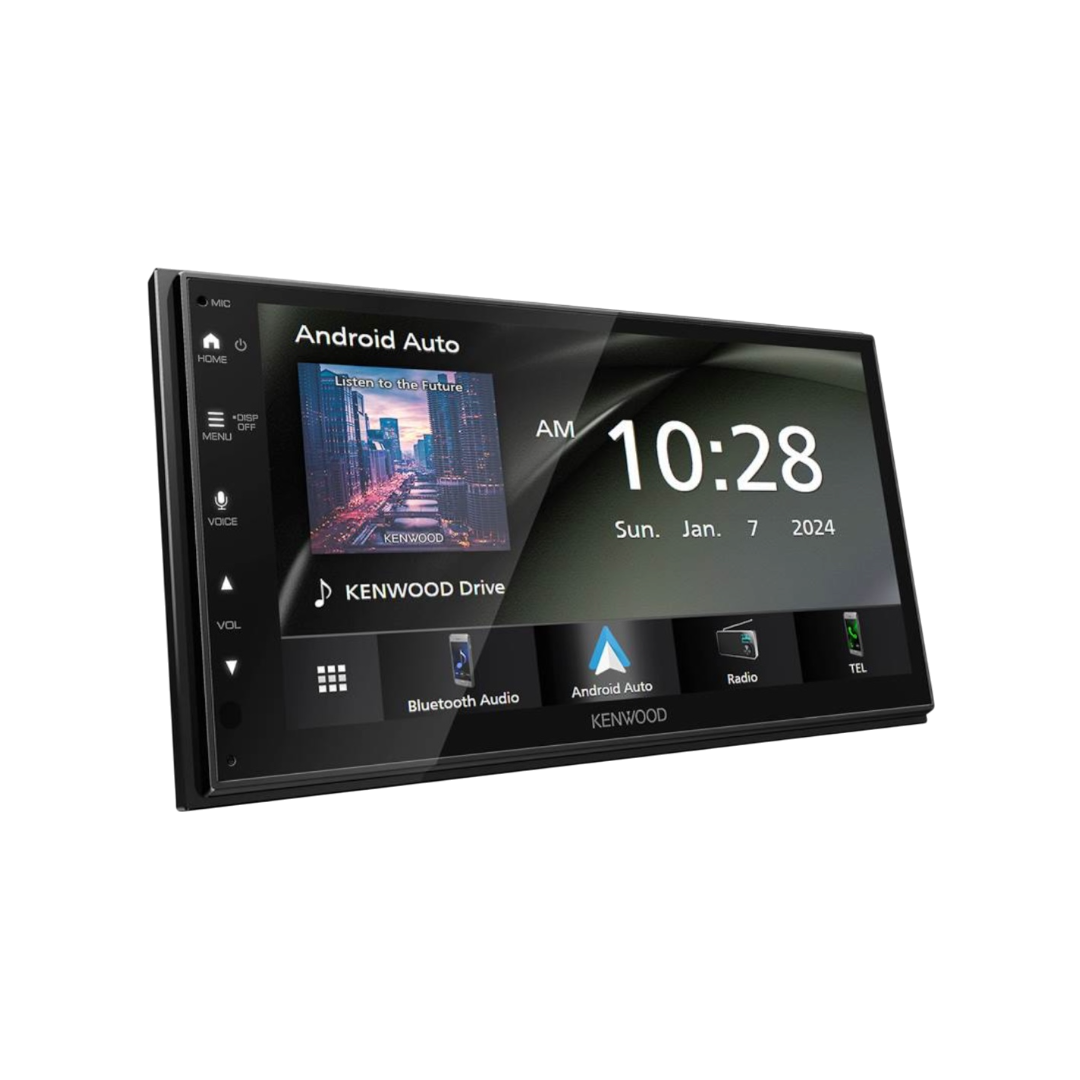

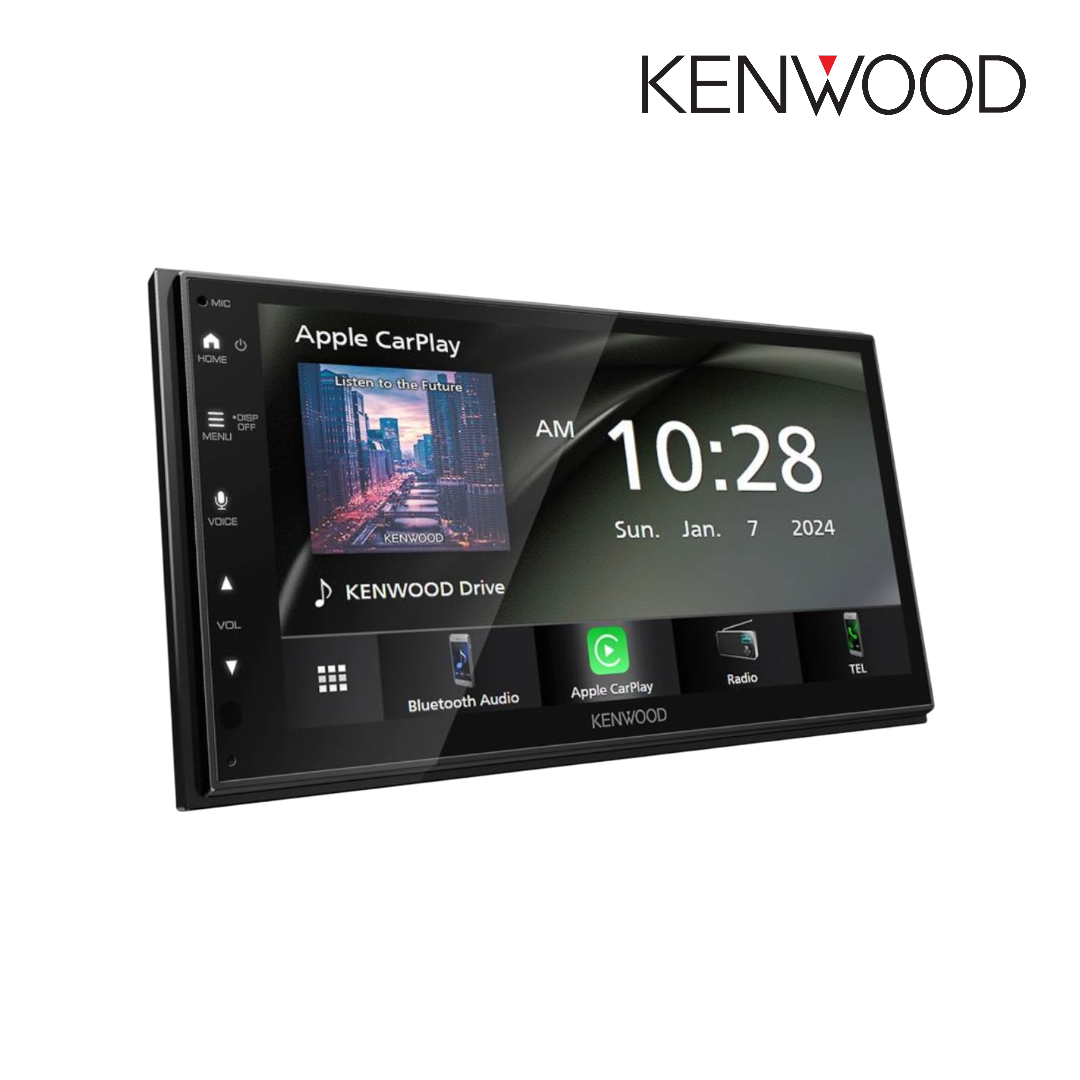

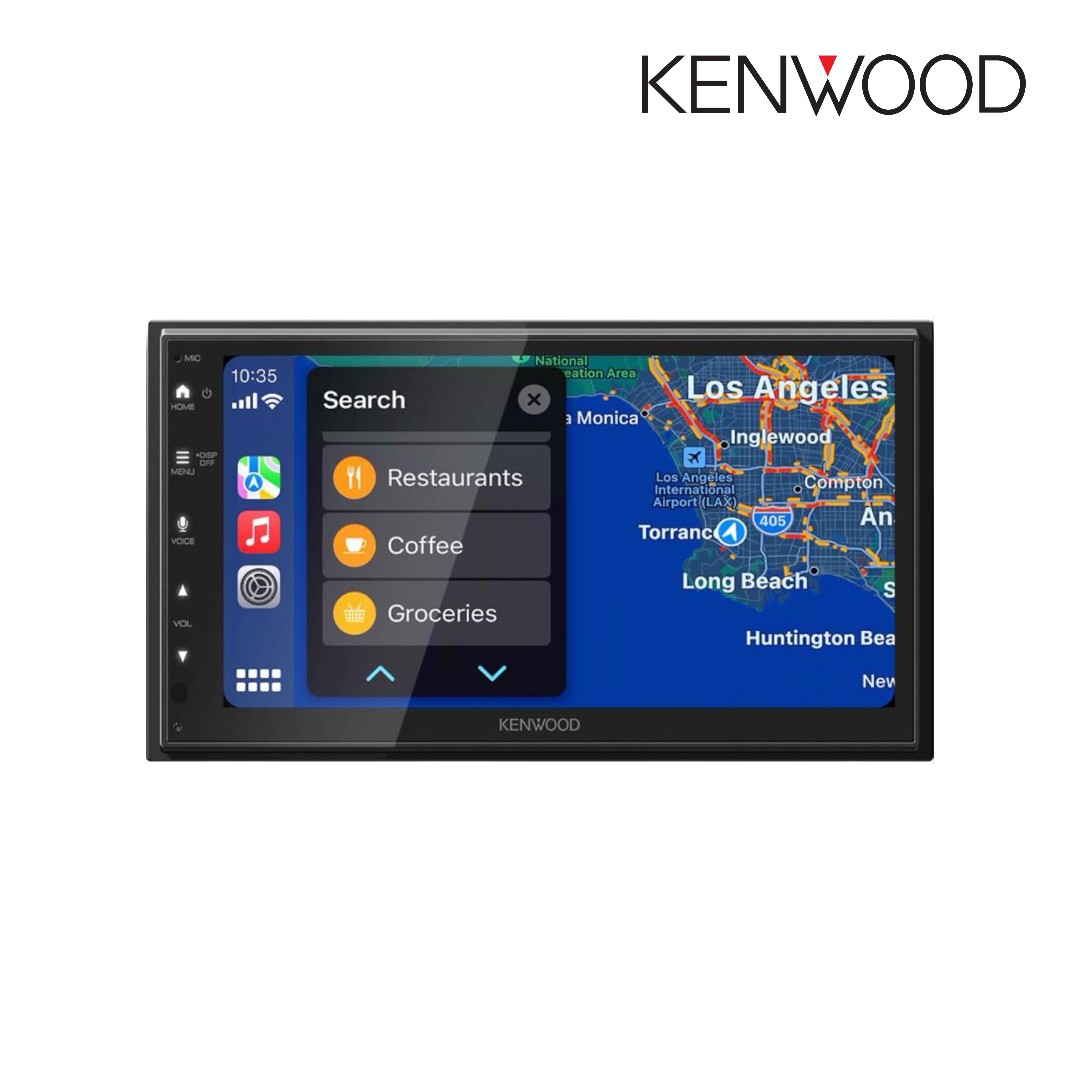

6.8" Digital Multimedia Receiver Wired CP/AA DMX4710S

General

• RMS Power: 22 watts

Expandability

• AUX Input: No

• Audio/Video Input: No

• USB Input: Rear

• USB Port Power: 2.1A

• Backup Camera Input: Yes

• Second Camera Input: No

• Preamp Outputs: 6-channel

• Sub Preamp Outputs: Yes

• Memory Card Slot: USB memory

Smartphone Control

• iPhone Compatibility: iPhone 6S and newer

• Apple CarPlay: Wired only

• Siri Control: CarPlay only

• Android Control: Yes

• Android Auto: Wired only

Tuner

• FM Sensitivity: 16.2 dBf

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback

• Music Playback: MP3, WMA, AAC, WAV, FLAC

• High-Resolution Playback: FLAC/WAV up to 24-bit/192kHz

Navigation

• Navigation via CarPlay & Android Auto

• iOS Apps: Apple Maps, Google Maps, Waze

• Android Apps: Google Maps, Waze

Features

• Built-in Bluetooth

• Bluetooth Version: 5.0

• SiriusXM Ready

• Video Screen: Yes

• Preamp Voltage: 2.5V

• Screen Size: 6.8”

• Screen Type: Swipeable Capacitive

• Key Button Color: Blue

• EQ Bands: 13

• Wireless Remote: Optional

• Steering Wheel Control Compatible: Adapter required

Dimensions

• Chassis Depth: 3.435”

• Chassis Width: 7.005”

• Chassis Height: 3.945”

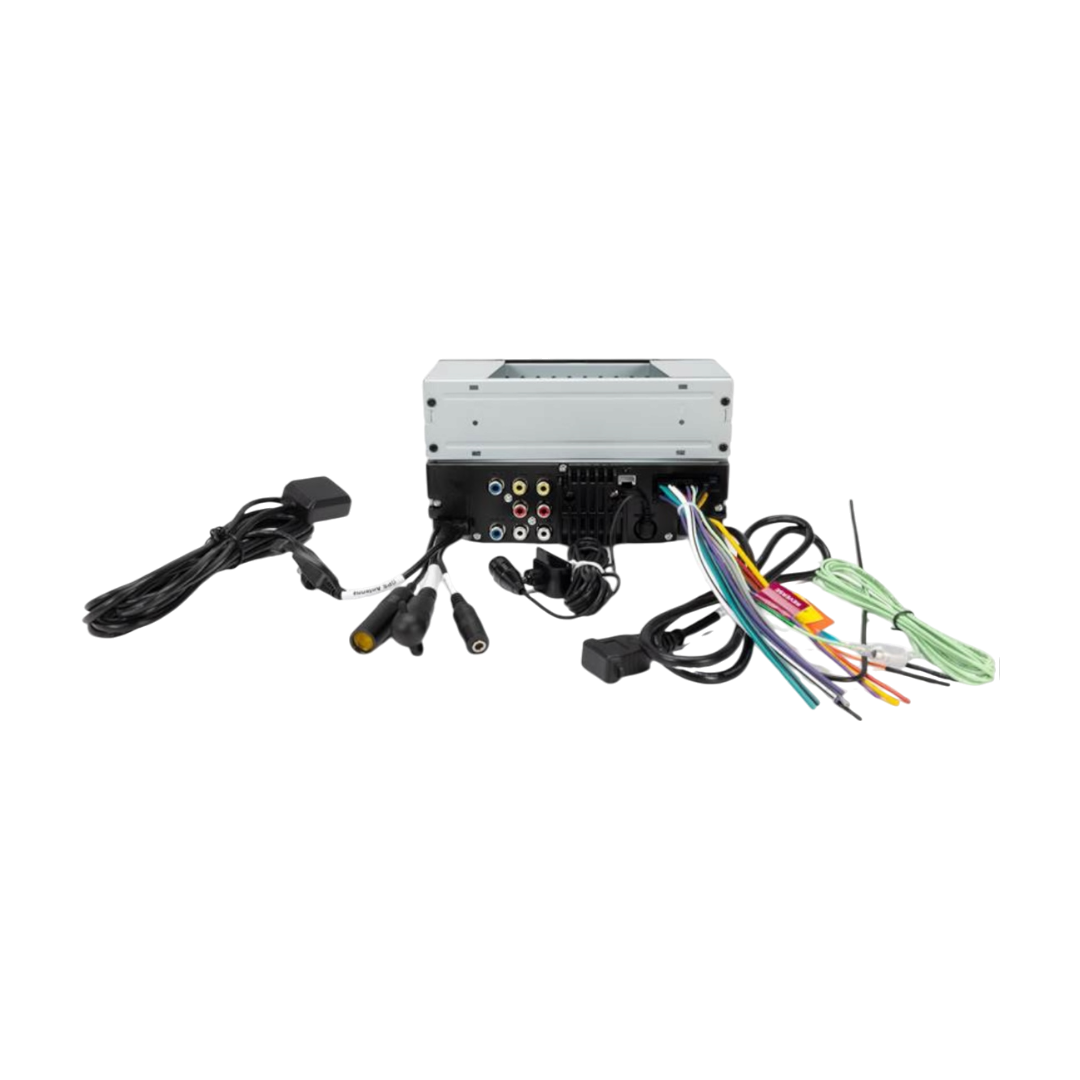

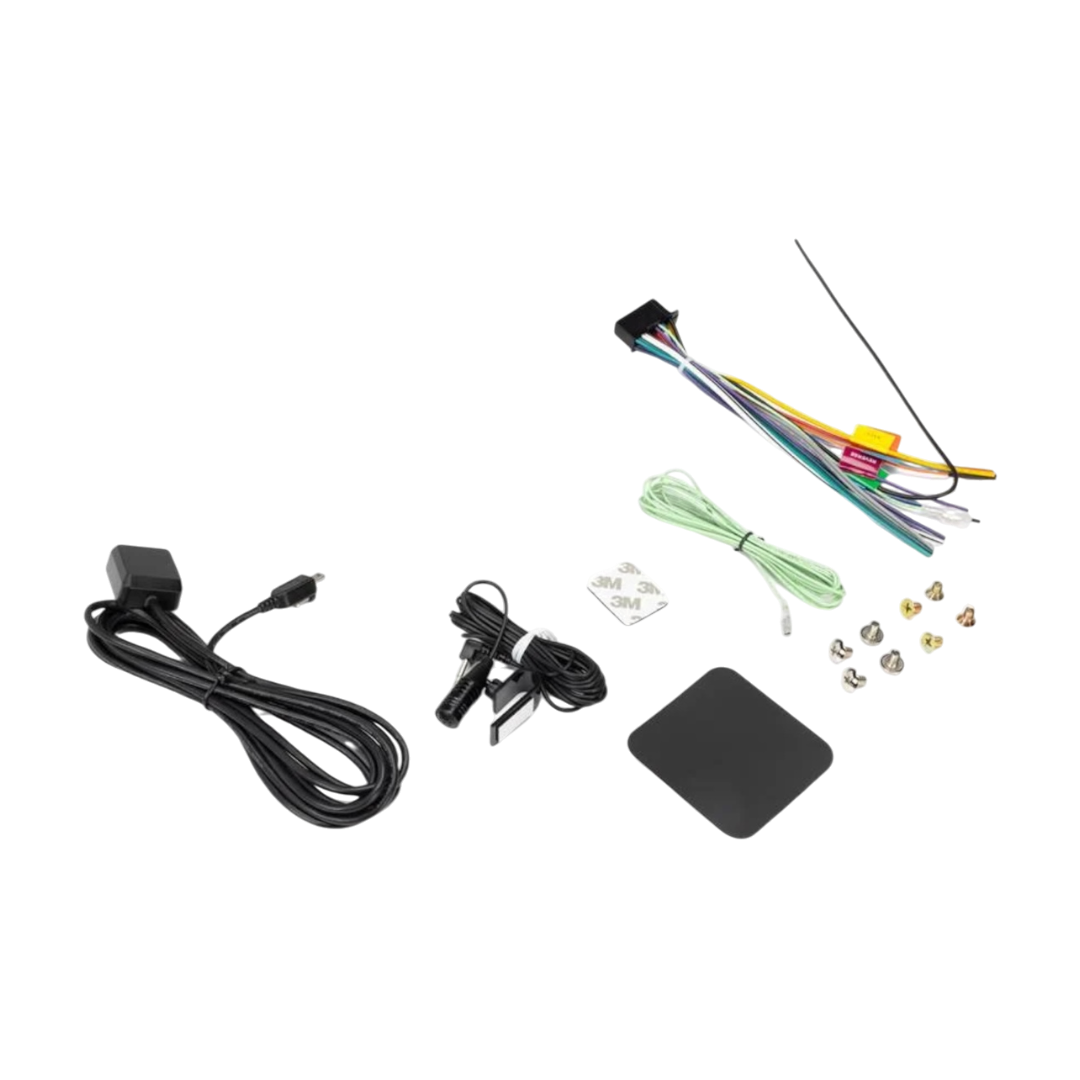

• Digital multimedia receiver (15A fuse)

• 2 Side brackets (pre-installed)

• Wiring harness

• 6.5' Light-green parking brake wire (pre-installed)

• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)

• GPS antenna (attached 10' cable terminated by a microUSB connector)

• Self-adhesive mounting pad

• Two-sided tape

• 4 Pan-head ISO-mount screws

• 4 Flat-head ISO-mount screws

• Quick Start Guide

• Warranty card

• Microphone Note
