6.95” Wireless CarPlay/ Android Auto Media Receiver XAV-AX4000

• digital multimedia receiver with AM/FM tuner

• 6.95" anti-glare resistive touchscreen display with brushed aluminum key terminal

• Bluetooth hands-free calling and audio streaming

• high-quality wireless LDAC audio streaming

Smartphone Features:

• works with Apple CarPlay (wireless only) and Android Auto (wired/wireless)

• voice control with Siri and Google Assistant

Audio/Video Features:

• plays media from USB memory devices (see Details for full capabilities)

• 14-band equalizer with time alignment

• subwoofer controls

Expandability:

• inputs: rear USB-C input, rear-view camera input

• outputs: 5-channel preamp outputs (2-volt front, rear, mono sub)

Other Info:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

• built-in internal amp (20 watts RMS/55 peak x 4 channels)

• works with iDataLink Maestro module

  • retains factory features in a wide selection of vehicles

  • displays engine performance and other vehicle data on touchscreen

• CTA-2006 compliant

• fits double-DIN dash openings

• compatible with most factory steering wheel audio controls (adapter required)

• General

  • RMS Power (CTA-2006): 20 watts

  • RMS Power (Manufacturer): 20 watts

  Expandability

  • AUX Input: No

  • Audio/Video Input: No

  • USB Input: Rear (USB-C)

  • USB Port Power: 3A

  • Backup Camera Input: Yes

  • Second Camera Input: No

  • Preamp Outputs: 5-channel

  • Sub Preamp Outputs: Yes

  • Switchable Rear Preamp Outputs: No

  • Memory Card Slot: USB memory

  Smartphone Control

  • iPhone Compatibility: 5S and newer

  • CarPlay: Wireless only

  • Siri Control: Yes

  • Android Control: Yes

  • Android Auto: Wired or wireless

  • Alexa Voice Control: No

  Tuner

  • FM Sensitivity: 7 dBf

  • European Tuning: No

  • Seek/Scan: Seek

  • Radio Data System: Yes

  File Playback

  • Music File Playback: MP3, WMA, AAC, ALAC, FLAC, WAV, DSD

  • High-Res Playback: ALAC, FLAC, WAV, DSD

  Navigation Control

  • Navigation: CarPlay, Android Auto

  • Navigation App Compatible (iOS): Apple, Google, Waze

  • Navigation App Compatible (Android): Google, Waze

  Features & Specs

  • Bluetooth Compatible: Built-in

  • Bluetooth Version: 5.0

  • Satellite Radio Ready: SiriusXM

  • HD Radio: No

  • Video Screen: Yes

  • Preamp Voltage: 2

  • Screen Size: 6.95 inches

  • Screen Type: Basic (Resistive)

  • Display Color: ---

  • Key Button Color: White

  • EQ Bands: 14

  • Wireless Remote: Optional

  • Steering Wheel Control Compatible: Adapter required

  Dimensions

  • Chassis Depth: 5.145 inches

  • Chassis Width: 7.035 inches

  • Chassis Height: 3.955 inches

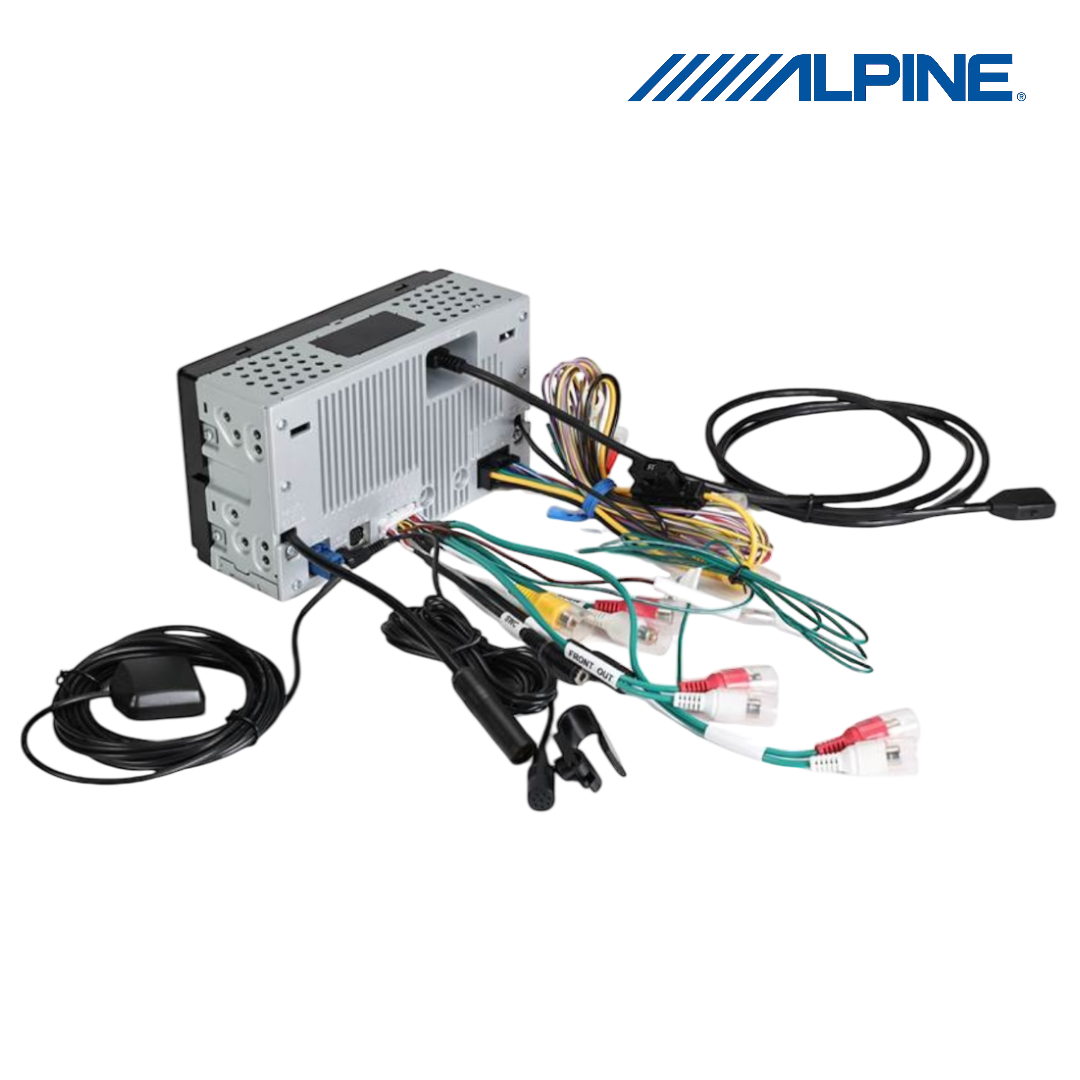

• Digital multimedia receiver

• Wiring harness (attached 6.5' parking brake wire)

• Camera/Preout harness

• 3-Wire to 3.5mm SWC adapter

• 59" USB-C extension cable

• GPS antenna (attached 10' cable terminated by a FAKRA connector)

• GPS Antenna mounting plate

• Microphone with visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)

• Surface bracket

• Two-sided tape

• Four M5x9mm ISO-screws

• Wire-tie

• Operating Instructions

• Warranty Information
