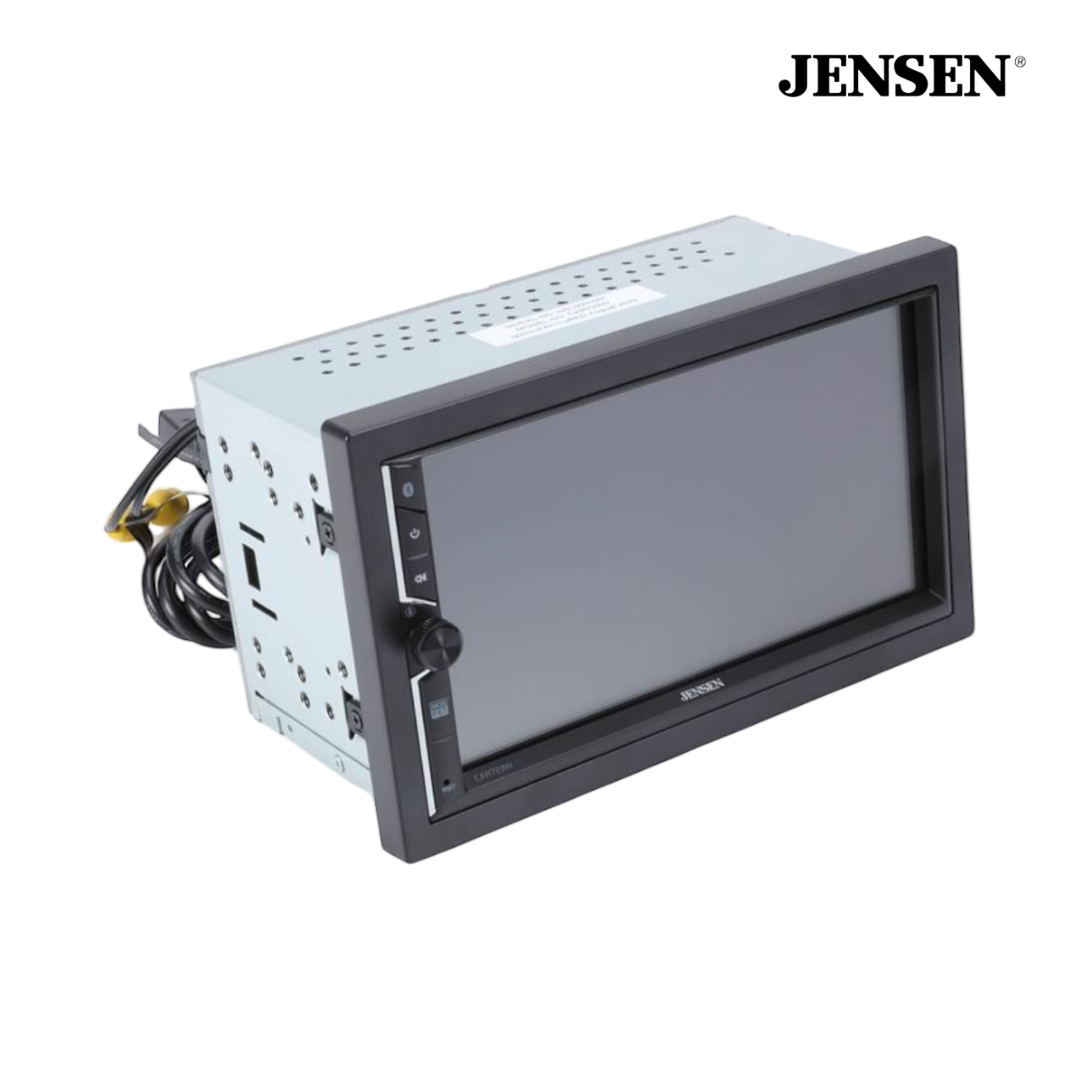

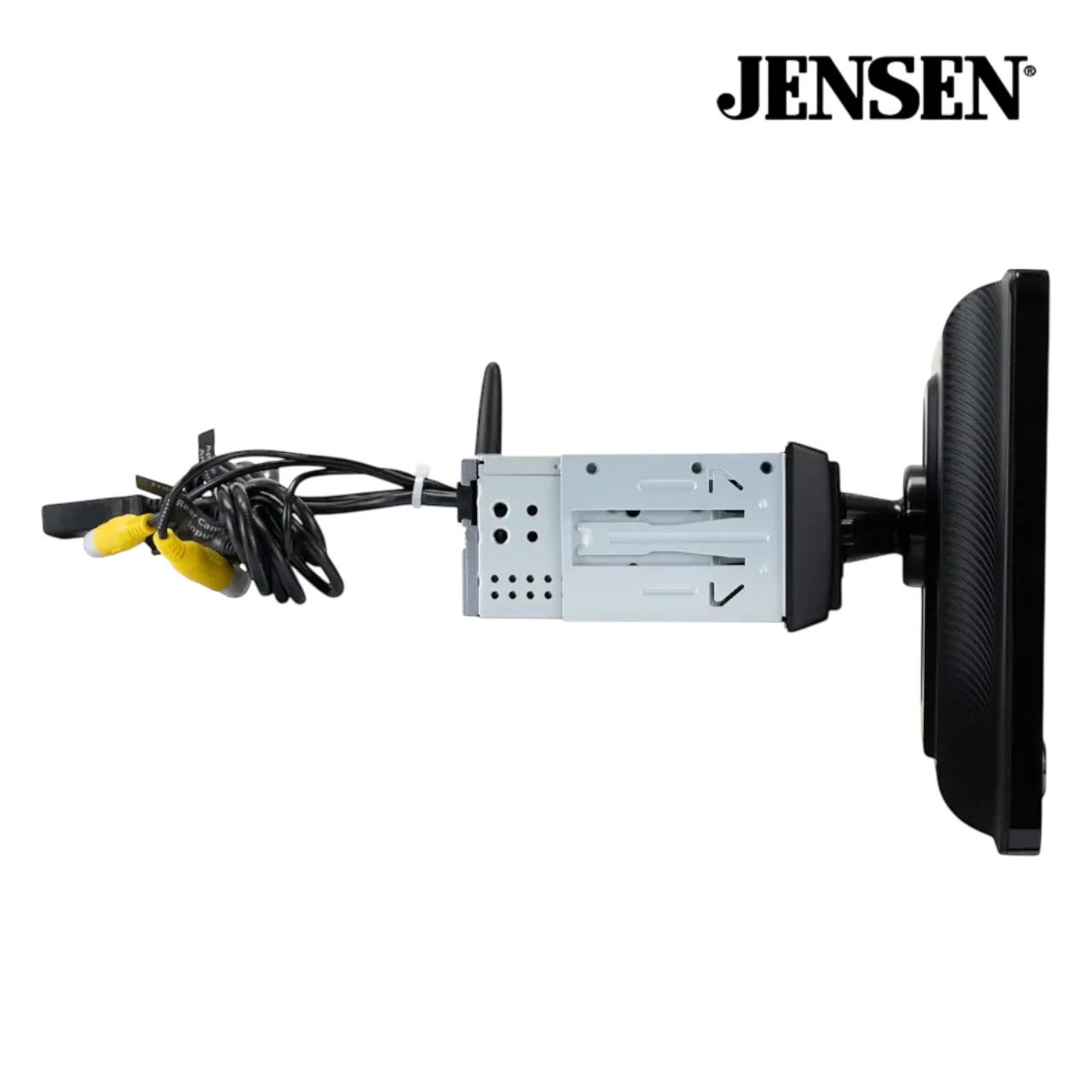

7-inch Digital Multimedia Receiver with Wireless CP\AA CAR723W

General features:

• digital multimedia receiver with AM/FM tuner (does not play discs)

• 7" capacitive touchscreen display

• fits double-DIN dash openings

• Bluetooth for hands-free calling and audio streaming

Smartphone features:

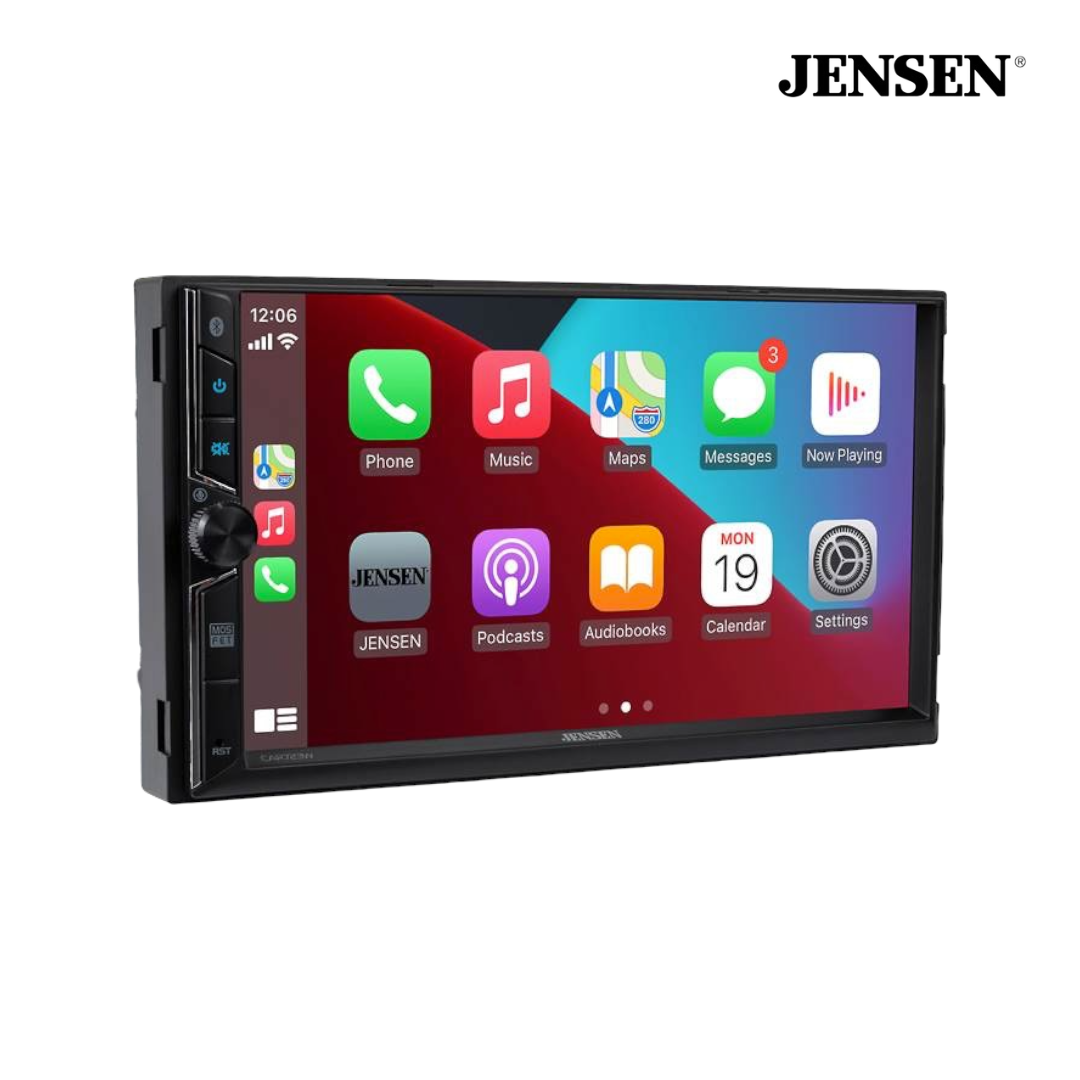

• wireless or wired Apple CarPlay and Android Auto compatible

• push-to-talk button for smartphone assistants

Audio/video features:

• FLAC/MP3 file playback via USB

• 10-band EQ with 7 preset EQ curves

Expandability:

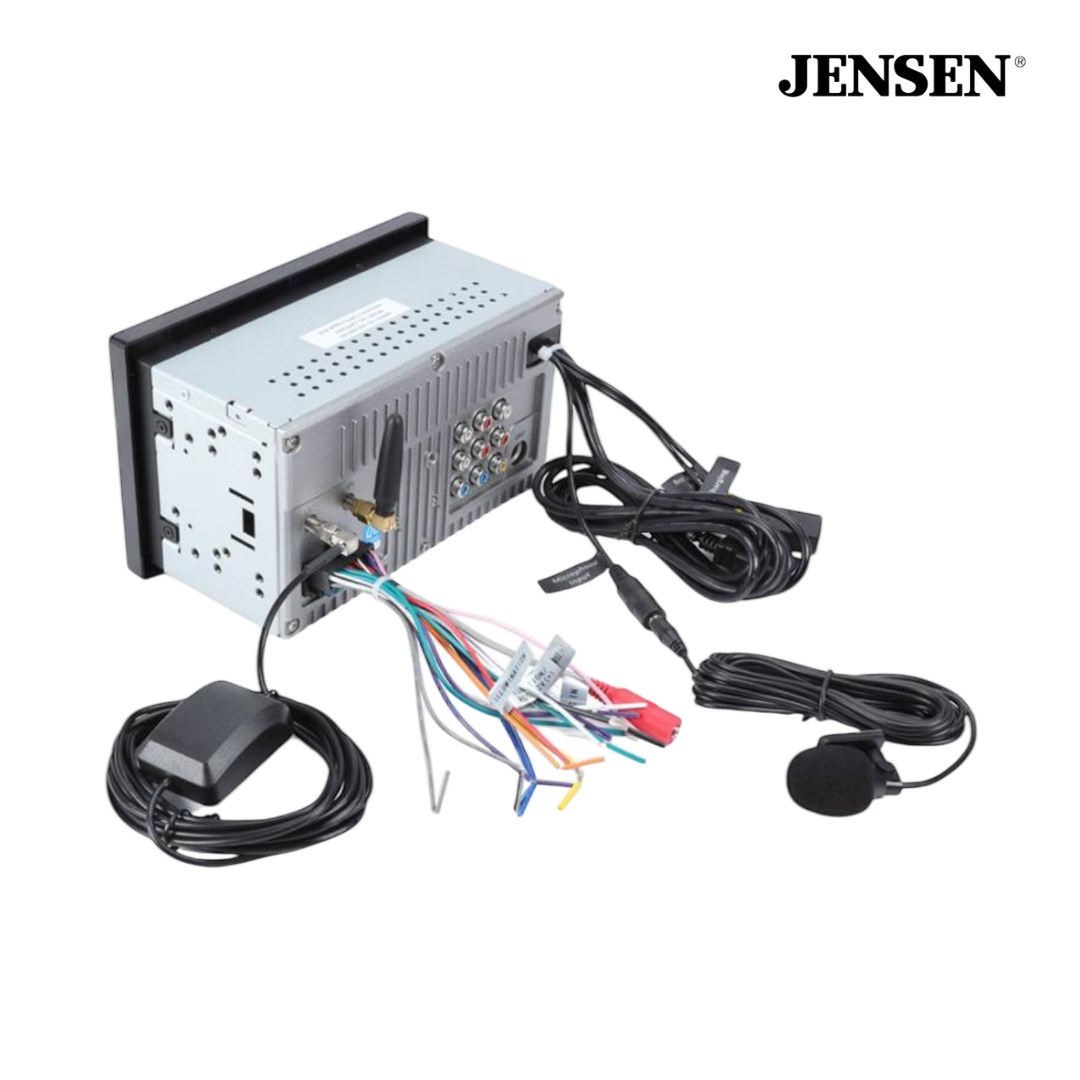

• inputs: 2 rear USB inputs, rear A/V input (RCA), front and rear camera inputs

• outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

• built-in internal amp (16 watts RMS CTA-2006/60 peak x 4 channels)

• compatible with most factory steering wheel audio controls (adapter required)

• CTA-2006 compliant

General

• RMS Power (CTA-2006): 16 watts

• RMS Power (Manufacturer): 16 watts

Expandability

• AUX Input: No

• Audio/video Input: RCA (rear)

• USB Input: Rear (2)

• USB Port Power: 2.1A

• Backup Camera Input: Yes

• Second Camera Input: Yes

• Camera Input (Marine): N/A

• Preamp Outputs: 6-channel

• Sub Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: USB

Smartphone Control

• iPhone Compatibility: 6S or newer

• CarPlay: Wired or wireless

• Siri Control: CarPlay only

• Android Control: Yes

• Android Auto: Wired or wireless

• Alexa Voice Control: No

Tuner

• FM Sensitivity: 10 dBf

• European Tuning: Yes

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback

• Music File Playback: MP3, FLAC

• High-res Playback: N

Navigation Control

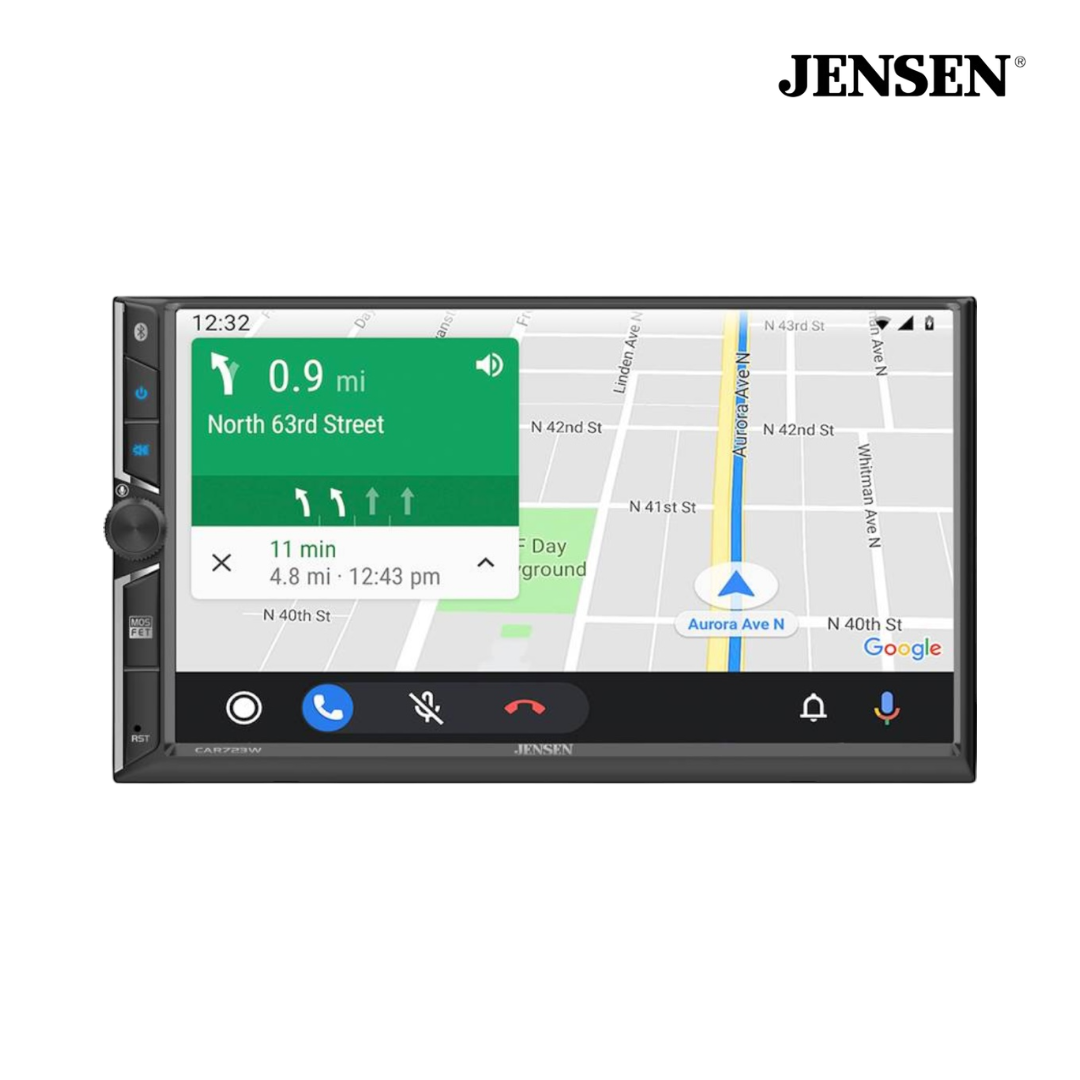

• Navigation: CarPlay, Android Auto

• Navigation App Compatible (iOS): Apple, Google, Waze

• Navigation App Compatible (Android): Google, Waze

Bluetooth & Audio Features

• Bluetooth Compatible: Built-in

• Bluetooth Version: 5.0

• Satellite Radio Ready: N

• HD Radio: N

• Video Screen: Yes

• Preamp Voltage: 4

• Screen Size: 7

• Screen Type: Swipeable (Capacitive)

• Display Color: ---

• Key Button Color: Variable

• EQ Bands: 10

• Wireless Remote: N

• Steering Wheel Control Compatible: Adapter required

Dimensions

• Chassis Depth: 4.645

• Chassis Width: 7.005

• Chassis Height: 3.955

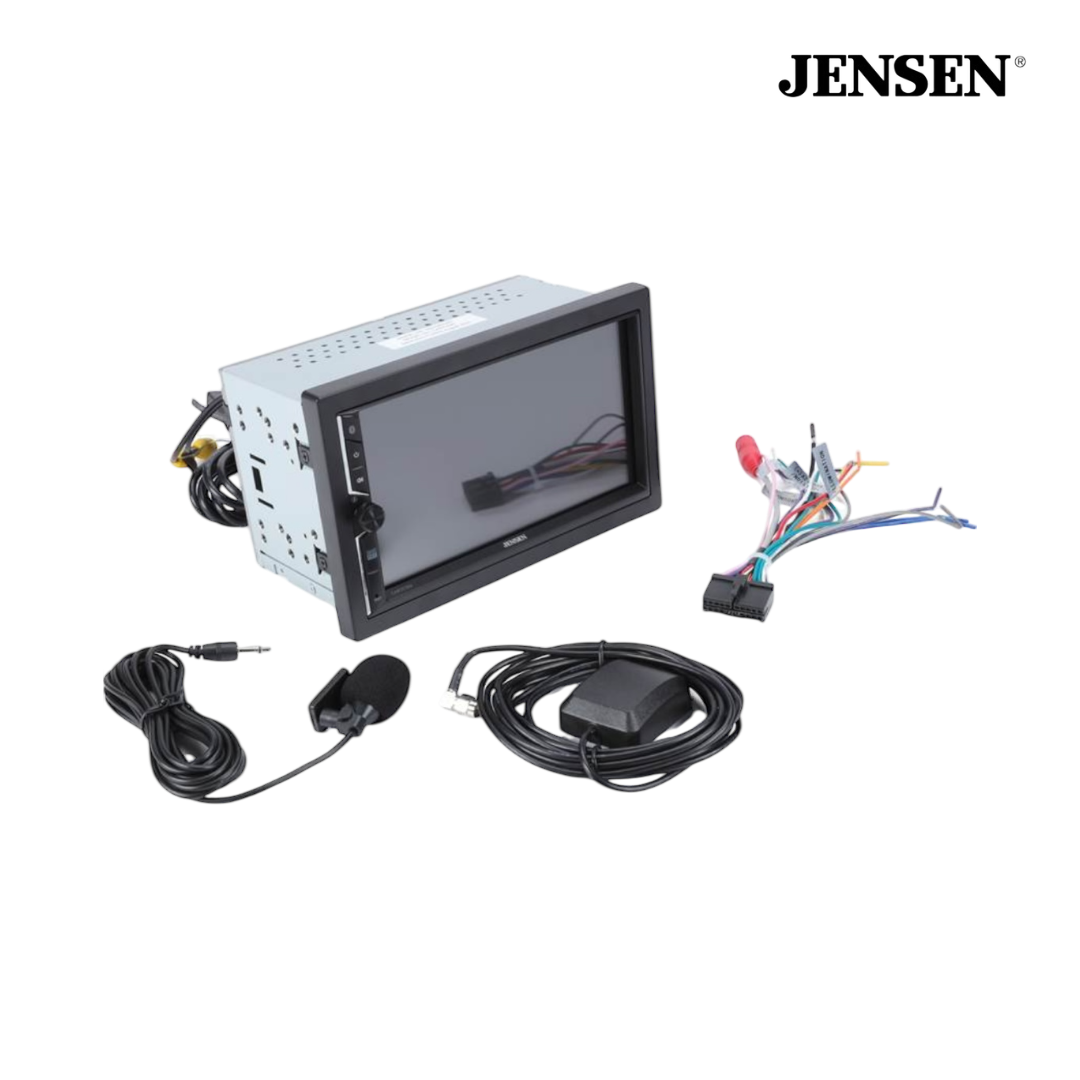

• Digital multimedia receiver (15A fuse)

• Trim-ring (pre-installed)

• Wiring harness

• GPS antenna (attached 9.75' cable terminated by SMB connector)

• Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector

• Self-adhesive GPS antenna pad

• 8 Pan-head ISO-screws

• 8 Counter-sunk ISO-screws

• Quick Start Guide

• Warranty/Registration card
