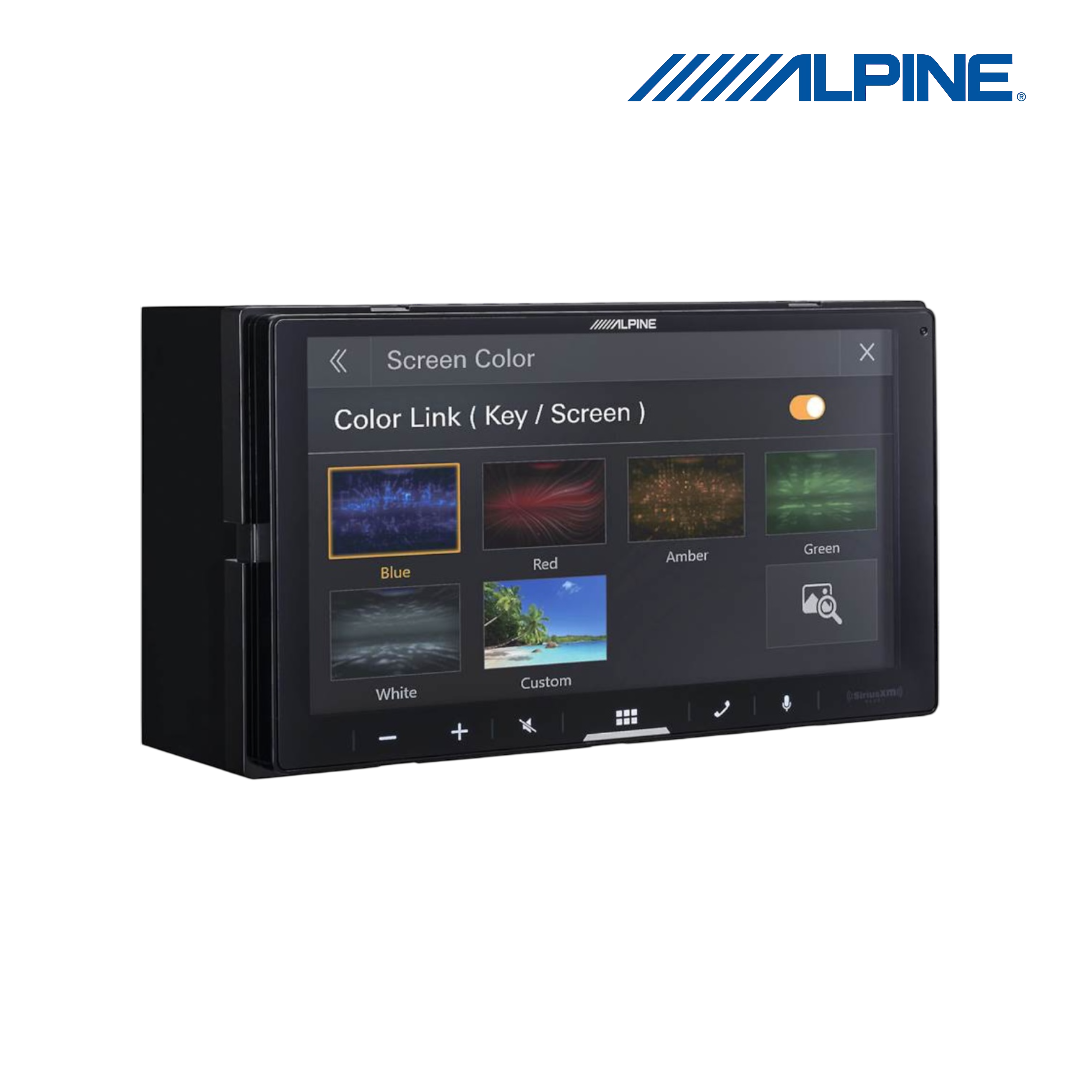

7" Shallow-Chassis Digital Multimedia Receiver Wired CP/AA ILX-W670

General features:

• digital media receiver with AM/FM tuner (does not play discs)

• 6.75" capacitive touchscreen

• designed for use with Alpine's KTA-200M power pack amplifiers

• fits in double-DIN (4" tall) dash openings

• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay compatible (requires wired connection)

• Android Auto compatible (requires wired connection)

• built-in iPhone control

• Siri Eyes Free and Google Assistant control

• playback and control of music files on compatible Android devices

Audio/video features:

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details tab for full capabilities)

• plays AVI, MPEG 1/2, MPEG-4, and WMV video files (see Details tab for full capabilities)

• 13-band graphic equalizer

• 6-channel time correction

• front, rear, and subwoofer crossovers

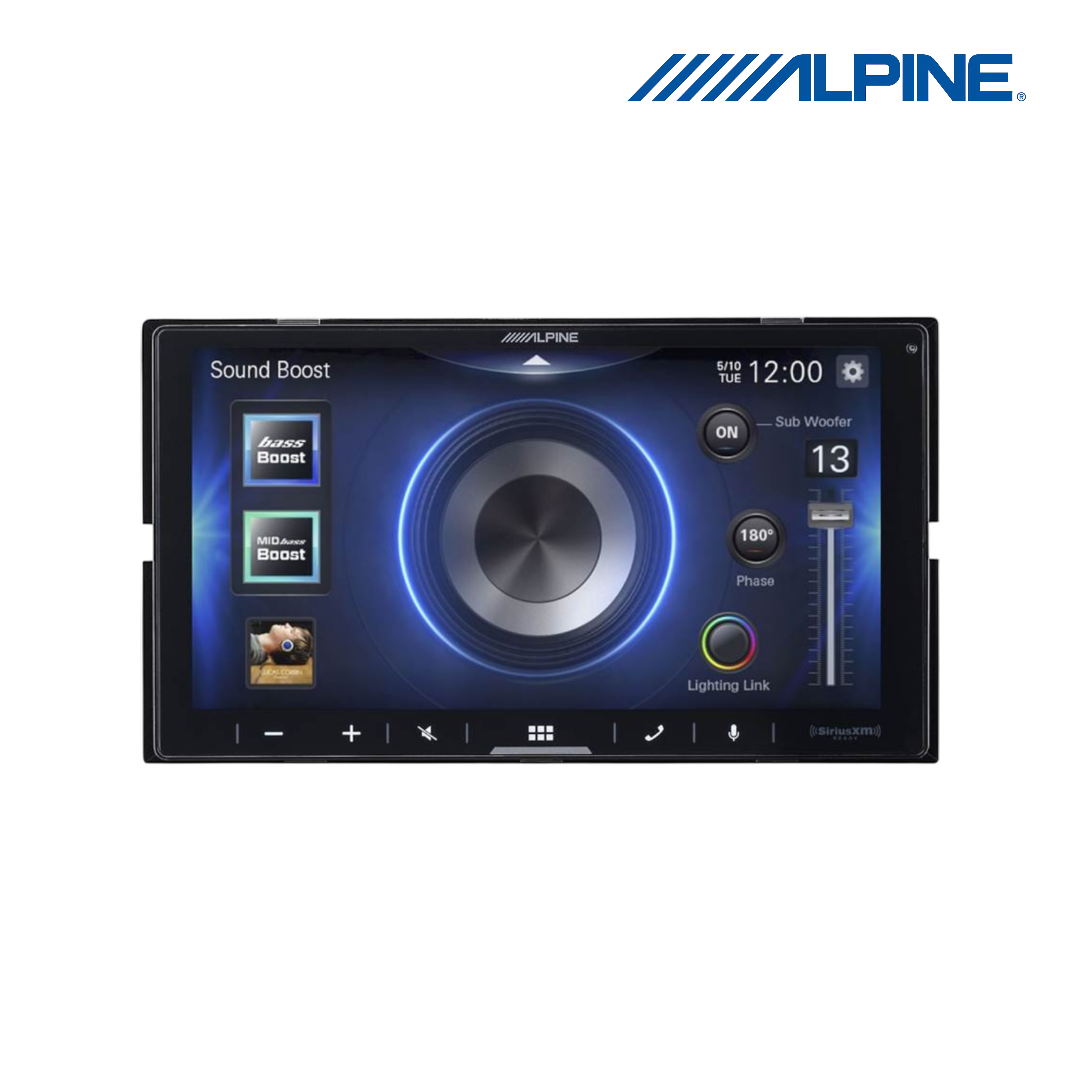

• Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)

• Lighting Link Control (compatible with Alpine PrismaLink subwoofers)

Expandability:

• works with SiriusXM SXV300 tuner (not included)

• inputs: rear USB port, rear 3.5mm audio/video auxiliary input, camera input

• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other features and specs:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)

• compatible with most factory steering wheel audio controls (adapter required)

• built-in amplifier (16 watts RMS/50 peak x 4 channels)

• CTA-2006 compliant

• General:

  • RMS Power (CTA-2006): 16 watts

  • RMS Power (Manufacturer): 16 watts

  • Peak Output: 50 watts

  Expandability:

  • AUX Input: Mini (rear)

  • Audio/video Input: Mini (rear)

  • USB Input: Rear

  • USB Port Power: 1.5A

  • Backup Camera Input: Yes

  • Second Camera Input: No

  • Preamp Outputs: 6-channel

  • Sub Preamp Outputs: Yes

  • Switchable Rear Preamp Outputs: No

  • Memory Card Slot: USB memory

  Smartphone Control:

  • iPhone Compatibility: 6 and newer

  • CarPlay: Wired only

  • Siri Control: CarPlay only

  • Android Control: Yes

  • Android Auto: Wired only

  • Alexa Voice Control: No

  Tuner:

  • FM Sensitivity: ---

  • European Tuning: No

  • Seek/Scan: Seek

  • Radio Data System: No

  File Playback:

  • Music File Playback: MP3, WMA, AAC, FLAC, WAV

  • High-res Playback: No

  Navigation Control:

  • Navigation: CarPlay, Android Auto

  • Navigation App Compatible (iOS): Apple, Google, Waze

  • Navigation App Compatible (Android): Google, Waze

  Features & Specs:

  • Bluetooth Compatible: Built-in

  • Bluetooth Version: 5.0

  • Satellite Radio Ready: SiriusXM

  • HD Radio: No

  • Video Screen: Yes

  • Preamp Voltage: 4

  • Screen Size: 6.75 inches

  • Screen Type: Swipeable (Capacitive)

  • Display Color: ---

  • Key Button Color: Variable

  • EQ Bands: 13

  • Wireless Remote: No

  • Steering Wheel Control Compatible: Adapter required

  Dimensions:

  • Chassis Depth: 3.195 inches

  • Chassis Width: 7.015 inches

  • Chassis Height: 3.945 inches

• Digital media receiver

• Wiring harness (15A fuse)

• Preout/Camera harness

• 42" USB extension cable

• GPS antenna (attached 12' cable terminated by a Fakra connector)

• Self-adhesive mount for GPS antenna

• Microphone with bracket (attached 13' cable terminated by a male 2.5mm mono connector)

• 4 Pan-head ISO screws

• 4 Counter-sunk ISO screws

• Quick Reference Guide

• Registration Card
