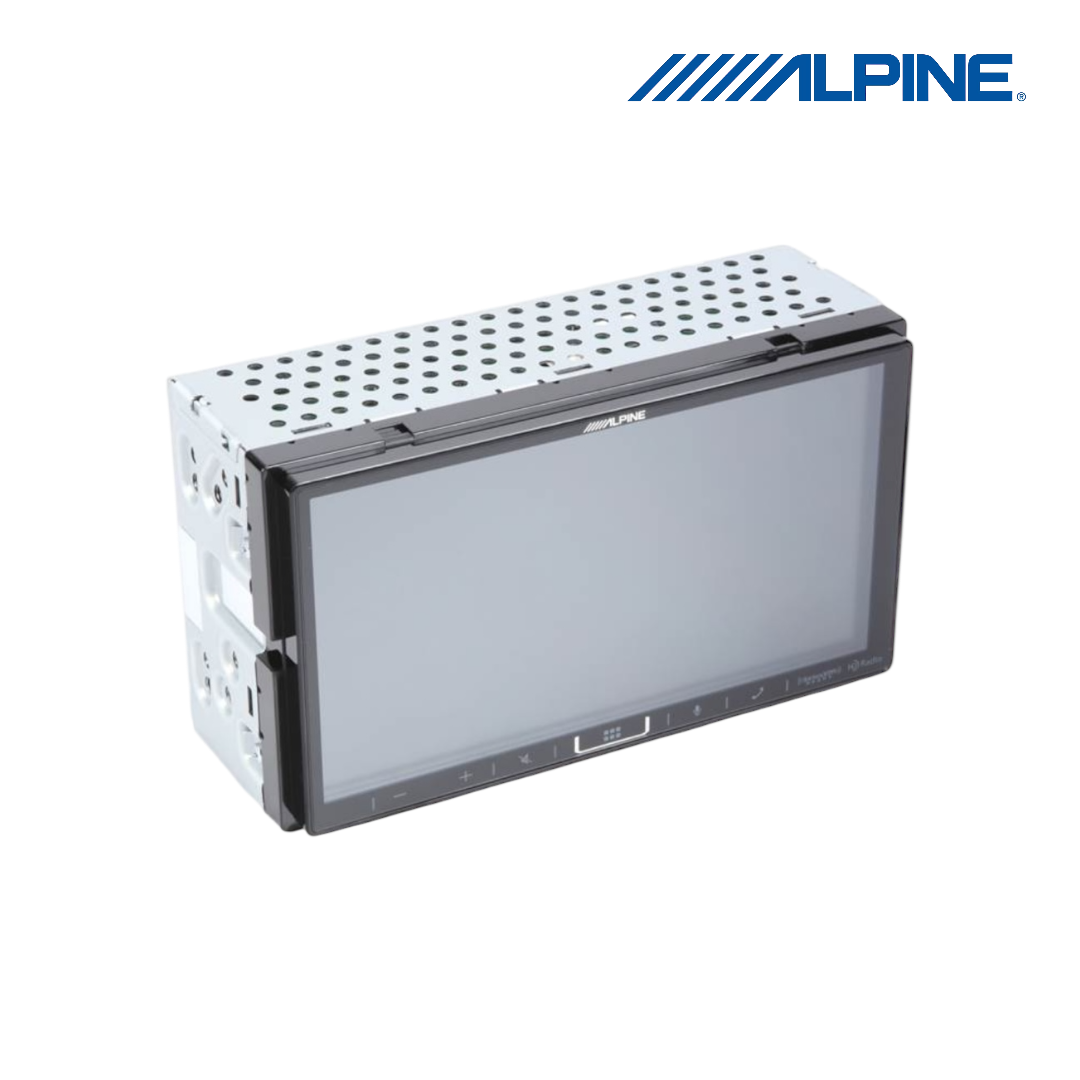

7" Shallow-Chassis Digital Multimedia Receiver Wired CP/AA with PowerStack™ iLX-407

General Features:

• digital media receiver with AM/FM tuner (does not play discs)

• 7" capacitive touchscreen

• fits double-DIN dash openings

• Bluetooth hands-free calling and audio streaming

• HD Radio tuner built-in

Smartphone Features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay and Android Auto compatible (requires wired connection)

• built-in iPod, iPhone, and iPad control

• playback and control of music files on compatible Android devices

Audio/video Features:

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details for full capabilities)

• plays AVI and MPEG4 video files

• 5-band graphic equalizer with time correction

• 10 EQ curve presets

• high- and low-pass filters

• Bass Engine SQ

• MediaXpander HD

Expandability:

• works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features

• works with Alpine PowerStack amplifiers in most dash openings

• inputs: rear USB port, rear HDMI input, rear 3.5mm mini A/V input, front- and rear-view camera inputs

• outputs: rear composite video output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)

• built-in internal amp (16 watts RMS CTA-2006 x 4 channels/50 watts peak)

• compatible with most factory steering wheel audio controls (adapter required)

• compatible with iDatalink Maestro

  • retains factory features in a wide selection of vehicles

  • displays engine performance data on touchscreen

General

• RMS Power (CTA-2006): 16 watts

• RMS Power (Manufacturer): 16 watts

Expandability

• AUX Input: Mini (rear)

• Audio/Video Input: HDMI (rear), RCA (rear)

• USB Input: Rear (1.5A)

• Backup Camera Input: Yes

• Second Camera Input: Yes

• Preamp Outputs: 6-channel

• Subwoofer Preamp Output: Yes

• Memory Card Slot: USB memory

Smartphone Control

• iPhone Compatibility: iPhone 5S and newer

• CarPlay: Wired only

• Siri Control: Yes

• Android Control: Yes

• Android Auto: Wired only

• Alexa Voice Control: No

Tuner

• FM Sensitivity: 9.3 dBf

• European Tuning: No

• Seek/Scan: Seek

• RDS (Radio Data System): Yes

File Playback

• Supported Formats: MP3, WMA, AAC, FLAC, WAV

• High-Resolution Playback: No

Navigation Control

• Navigation via CarPlay & Android Auto

• iOS Apps Supported: Apple Maps, Google Maps, Waze

• Android Apps Supported: Google Maps, Waze

Features & Specs

• Bluetooth: Built-in (Version 4.1)

• Satellite Radio Ready: SiriusXM

• HD Radio: Yes

• Video Screen: Yes (6.95")

• Screen Type: Capacitive (Swipeable)

• Preamp Voltage: 4V

• Key Button Color: White

• EQ Bands: 5

• Wireless Remote: Optional

• Steering Wheel Control Compatible: Adapter required

Dimensions

• Width: 7.025"

• Height: 3.955"

• Depth: 2.855"

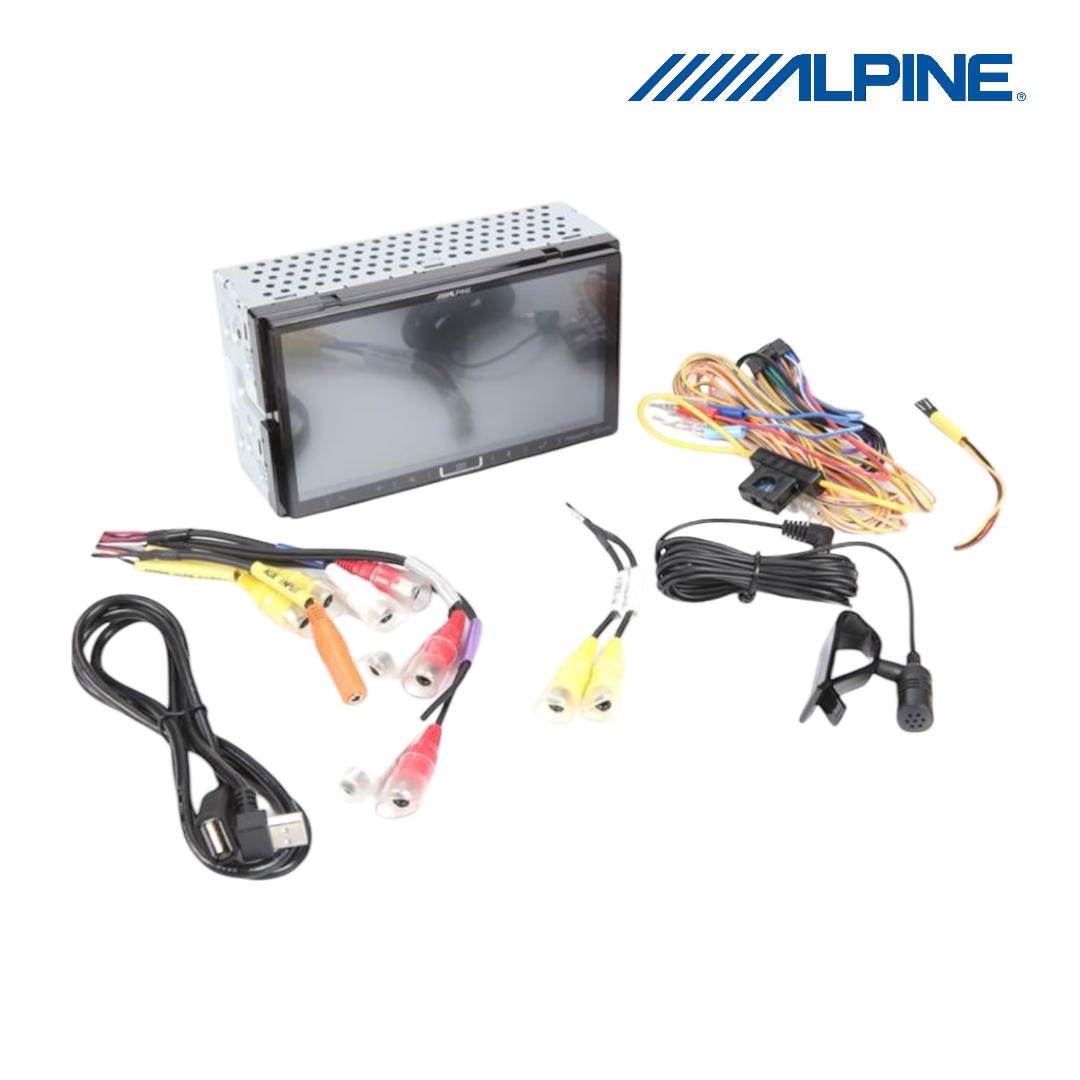

• Digital multimedia receiver

• Wiring harness (15A fuse)

• Preout/Camera harness

• Video in/out harness

• iDatalink harness

• 41" USB extension cable

• Microphone (attached 13' cable terminated by a male 3.5mm stereo connector)

• Bracket (for microphone)

• 4 ISO-screws

• Quick Reference Guide

• Registration Card
