Product highlights:
digital media receiver with AM/FM tuner (does not play discs)

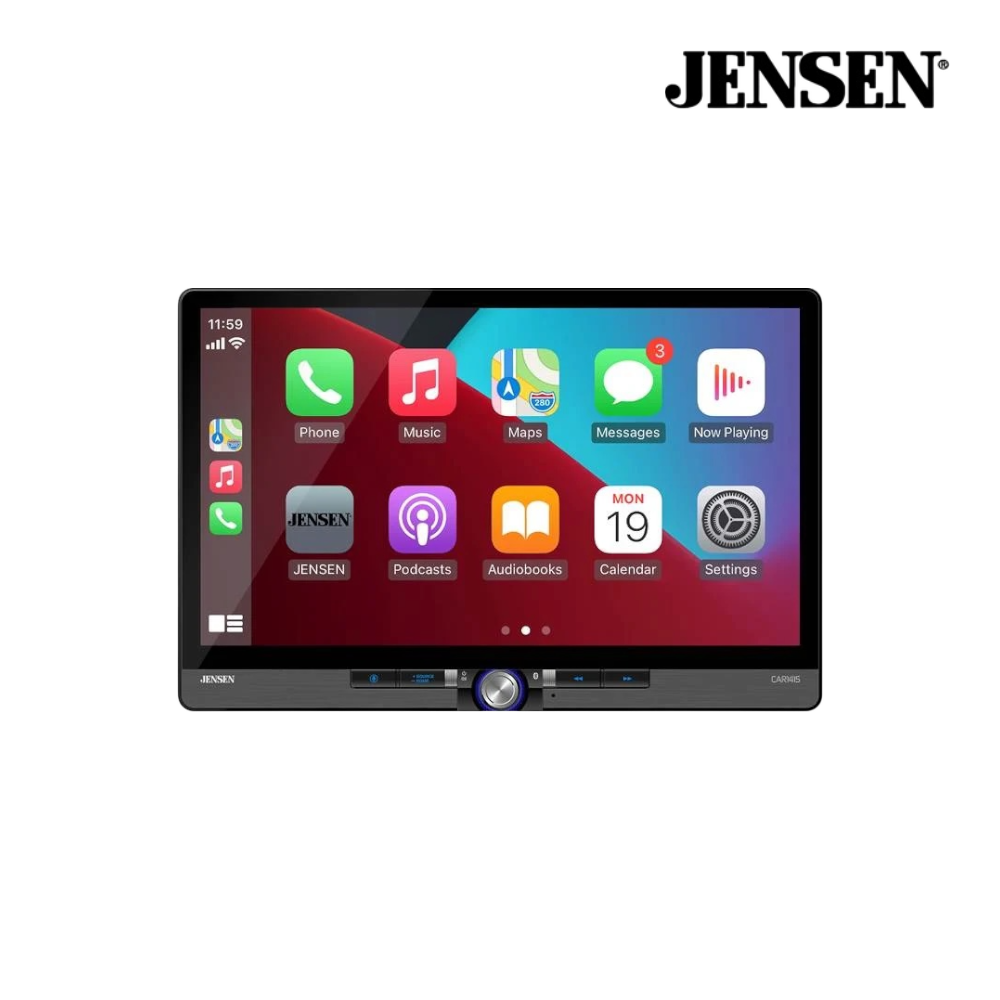

adjustable floating 10.1" capacitive touchscreen display
fits single-DIN and double-DIN dash openings
Bluetooth for hands-free calling and audio streaming
Smartphone features:
wired and wireless Apple CarPlay and Android Auto compatible
push-to-talk button for smartphone assistant (Siri or Google Assistant)
Audio/video features:
USB playback: MP3 and FLAC audio files
10-band EQ with 7 preset EQ curves
subwoofer volume control and selectable crossover
Expandability:
compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
inputs: two rear USB inputs (2.1A), rear A/V input (RCA), two camera inputs
outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
Important Note — Monitor dimensions are 10.125" x 6.75". Before ordering, check for possible interference with your dash and controls.
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in internal amp (16 watts RMS CTA-2006/60 watts peak x 4 channels)
works with iDatalink Maestro RR and RR2 modules
retains factory features in a wide selection of vehicles
displays engine performance data on touchscreen
CTA-2006 compliant
-

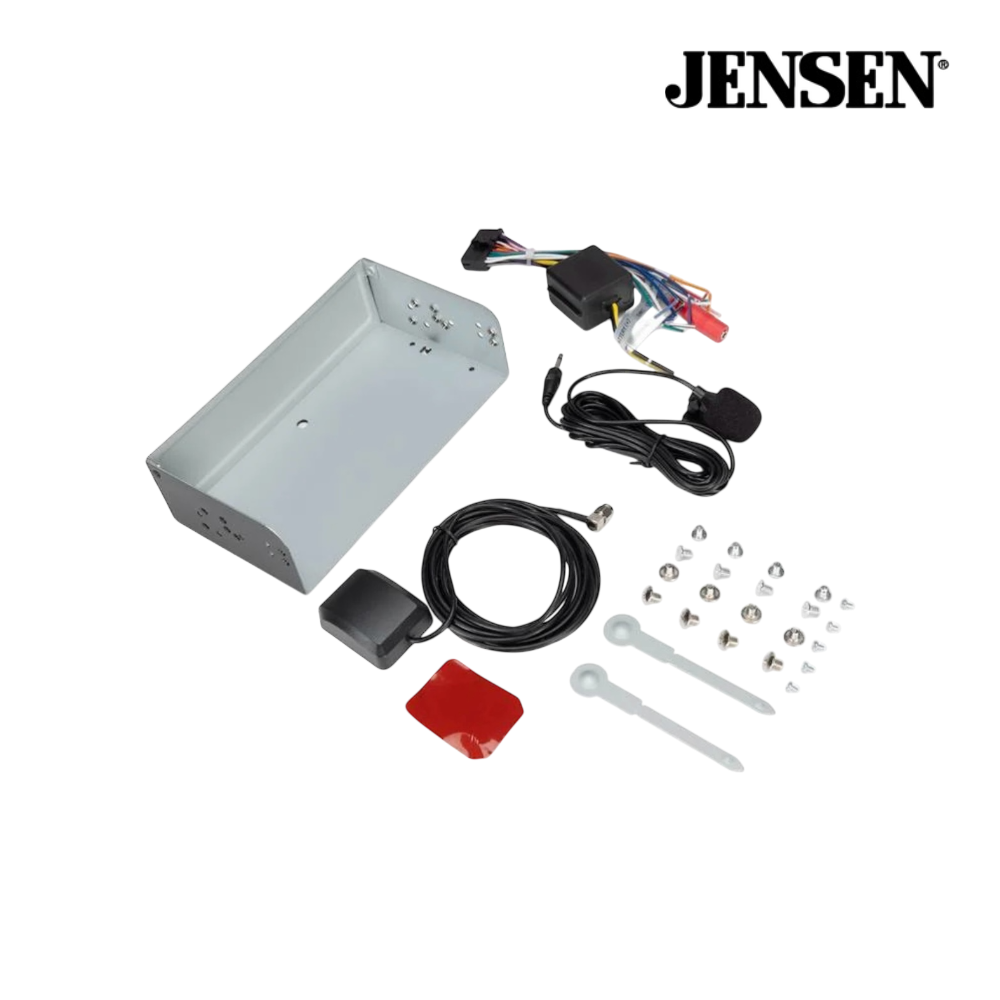

10" Touchscreen monitor
Source unit (15A fuse)
Wiring harness
GPS antenna (attached 9.75' cable terminated by SMB connector)
Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector
Self-adhesive GPS antenna pad
Mounting sleeve (pre-installed)
Trim-ring
Double-DIN bracket
8 Counter-sunk ISO-screws
8 Pan-head ISO-screws
4 Double-DIN bracket mounting screws
2 Radio removal tools
Quick Start Guide
Installation Guide
SiriusXM Satellite Radio Operation Guide
Registration/Warranty card
