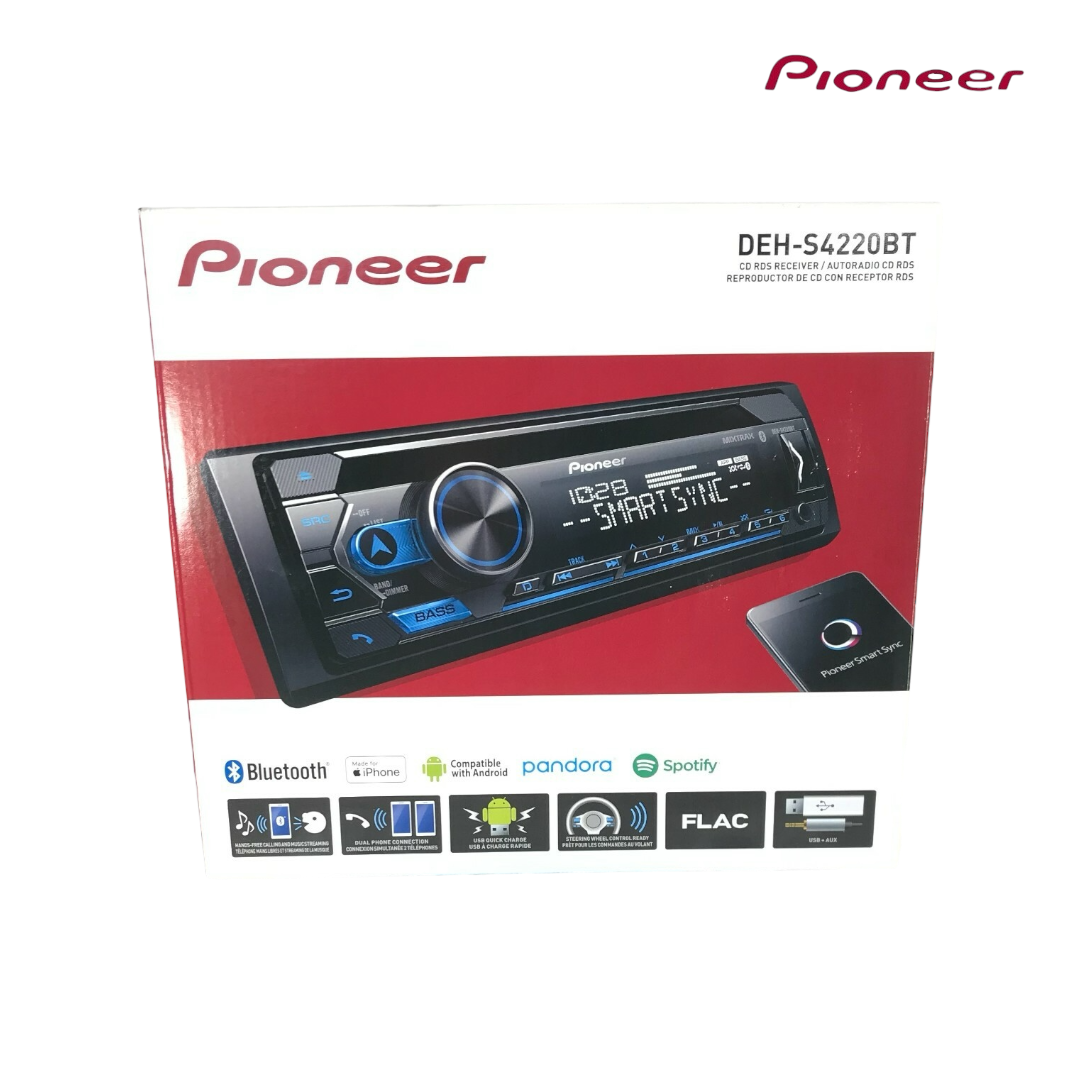

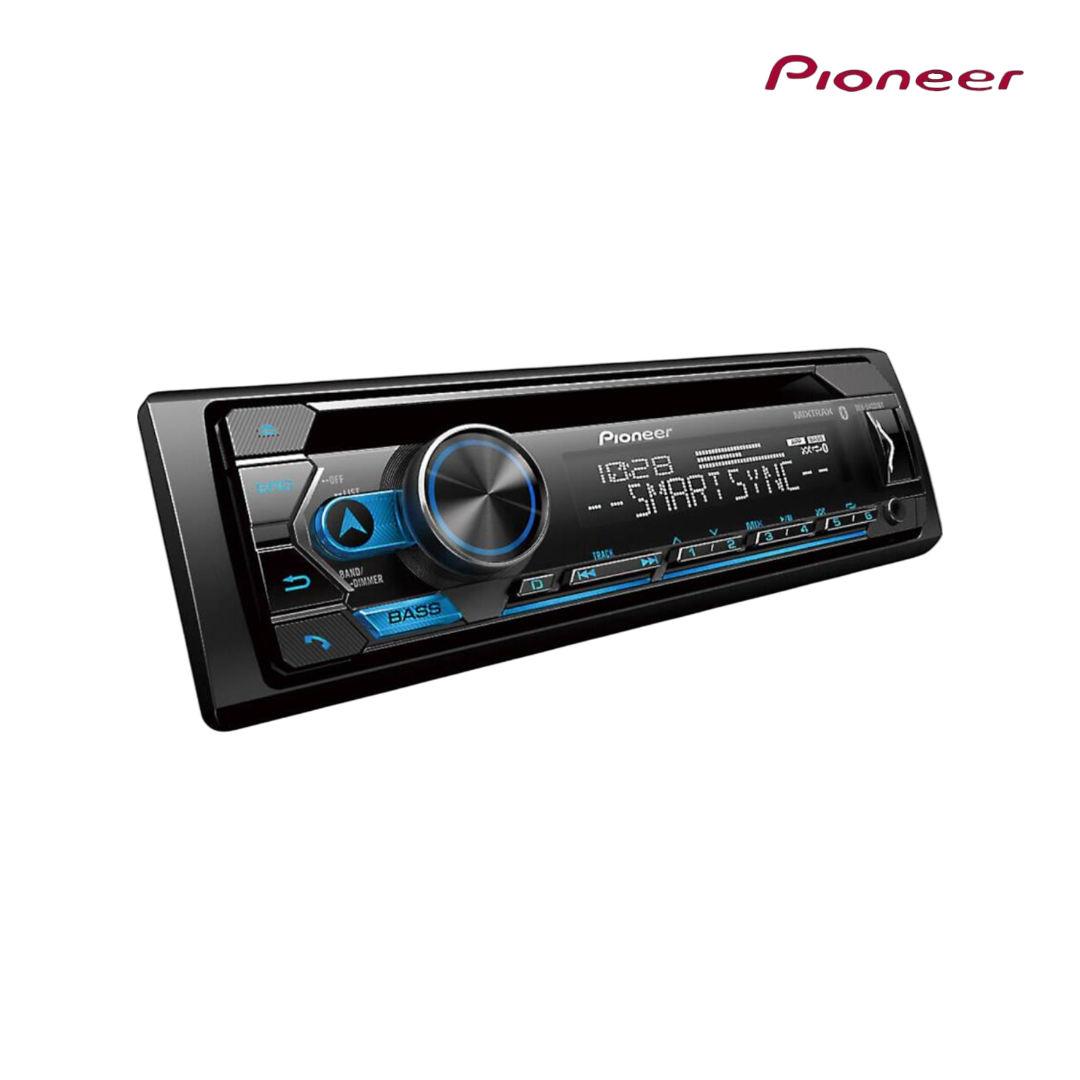

SINGLE DIN SMARTSYNC CD RECEIVER WITH BLUETOOTH DEH-S4220BT

General Features:

• CD receiver with AM/FM tuner

• built-in Bluetooth for hands-free calling and audio streaming

• FLAC file playback from USB devices

• detachable face with 2-line LCD display

• 10-level illumination dimmer

Smartphone Features (see Details for info on compatibility):

• compatible with Pioneer's Smart Sync App for multimedia functionality

  • voice control

  • easy access to navigation, music, and messaging apps

  • extra sound customization options

• selectable source lets you charge your phone without activating the USB port as a source

• Pandora control through iPhone and Android

• control and charging of Apple and Android devices using the USB connection

• USB Quick Charge (1.5 amps)

Audio Features:

• plays CDs, CD-Rs, and CD-RWs, and USB memory devices (see Details for full capabilities)

• Advanced Sound Retriever (ASR) for improved sound quality from compressed music files

• 13-band equalizer with seven preset tone settings (31 bands through Smart Sync app)

• 3-level loudness

• low-pass and high-pass filters

• subwoofer level control

Expandability:

• inputs: front panel auxiliary and USB inputs

• outputs: 4-channel preamp outputs (4-volt front, rear/subwoofer)

Other Info:

• built-in MOSFET amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)

• compatible with most factory steering wheel audio controls (adapter required)

General:

• RMS Power (CTA-2006): 14 watts

• RMS Power (Manufacturer): 22 watts

• Peak Output: 50 watts

Expandability:

• AUX Input: Front

• Audio/Video Input: N/A

• USB Input: Front

• USB Port Power: 1.5A

• Backup Camera Input: No

• Second Camera Input: No

• Preamp Outputs: 4-channel

• Sub Preamp Outputs: No

• Switchable Rear Preamp Outputs: Yes

• Memory Card Slot: USB memory

Smartphone Control:

• iPhone Compatibility: 5 and newer

• CarPlay: No

• Siri Control: Bluetooth

• Android Control: Yes

• Android Auto: No

• Alexa Voice Control: Yes

Tuner:

• FM Sensitivity: 11 dBf

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback:

• Music File Playback: MP3, WMA, AAC, FLAC, WAV

• High-res Playback: No

Navigation Control:

• Navigation: N/A

• Navigation App Compatible (iOS): N/A

• Navigation App Compatible (Android): N/A

Features & Specs:

• Bluetooth Compatible: Built-in

• Bluetooth Version: 4.0

• Satellite Radio Ready: No

• HD Radio: No

• Video Screen: No

• Preamp Voltage: 4

• Screen Size: N/A

• Screen Type: N/A

• Display Color: White

• Key Button Color: Blue

• EQ Bands: 13

• Wireless Remote: Optional

• Steering Wheel Control Compatible: Adapter required

Dimensions:

• Chassis Depth: 6.545 inches

• Chassis Width: 7.195 inches

• Chassis Height: 2.095 inches

• CD receiver (10A fuse)

• Face (attached)

• Trim-ring (installed)

• Sleeve (installed)

• Wiring harness

• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)

• Two-sided tape

• 4 Pan head ISO-mount screws (M5 x 8mm)

• 4 Flat-head ISO-mount screws (M5 x 9mm)

• 2 Removal tools

• Face-fixing screw

• Quick Start Guide

• Warranty Information
