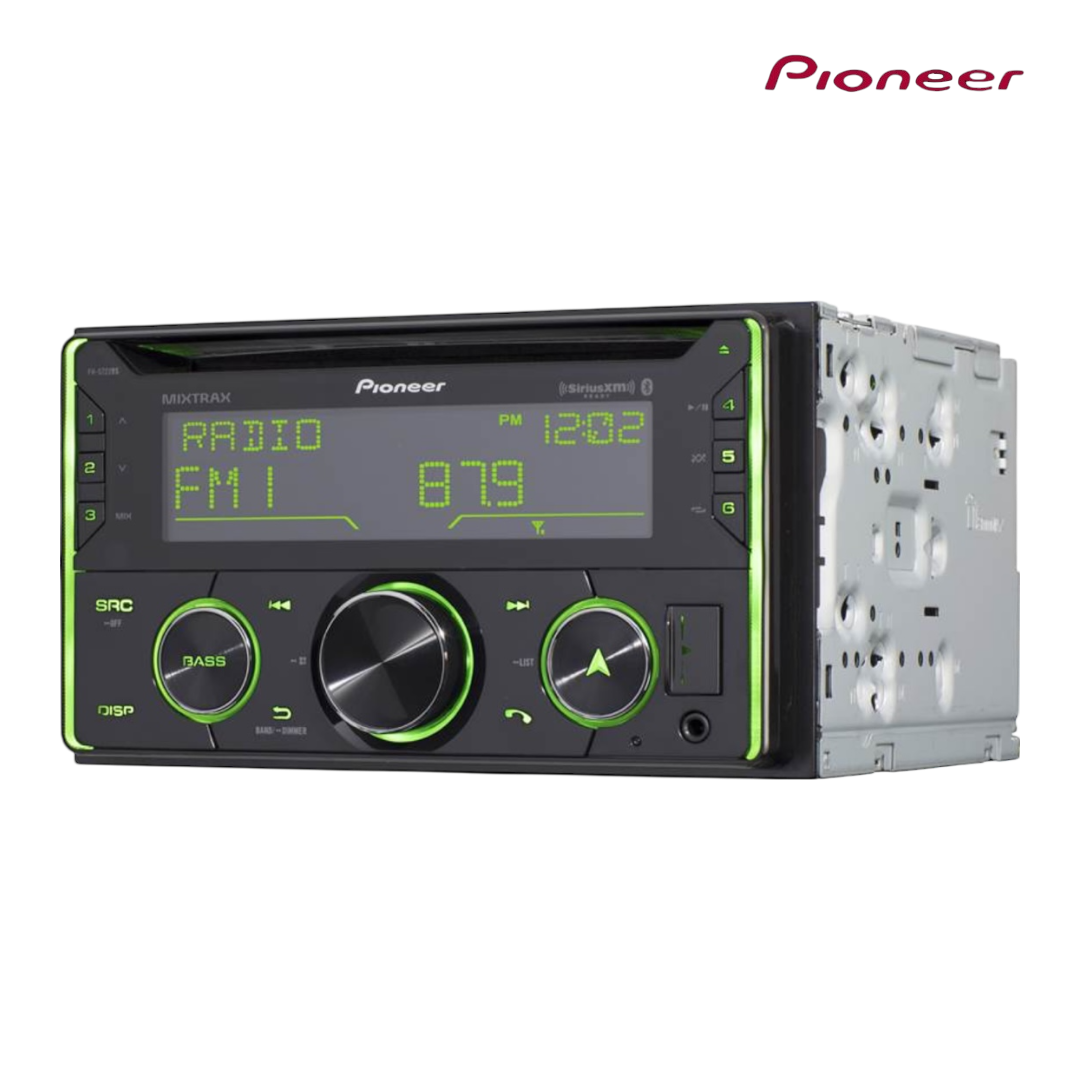

SMARTSYNC CD RECEIVER WITH BT/SIRIUS-XM FH-S722BS

General Features:

• CD receiver with AM/FM tuner

• built-in Bluetooth for hands-free calling and audio streaming

• variable color illumination with separate control of display and buttons

• fits double-DIN (4"-tall) dash openings

• FLAC playback from USB drives

Smartphone Features (see Details for info on compatibility):

• compatible with Pioneer's Smart Sync App for multimedia functionality

• voice control

• easy access to navigation, music, and messaging apps

• extra sound customization options

• built in iPod, iPhone, and iPad controls

• Pandora control with iPhone and Android

• music file playback on select Android devices through USB input

Audio Features:

• plays CDs, CD-Rs, and CD-RWs, and USB memory devices (see Details for full capabilities)

• Advanced Sound Retriever (ASR) for improved sound quality from compressed music files

• 13-band equalizer with seven preset tone settings (31 bands through Smart Sync App)

• 3-level loudness

• selectable crossover network

  • standard (front, rear, sub)

  • 3-way (highs, mids, and lows)

• subwoofer level control

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

• inputs: front panel auxiliary and USB inputs

• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Info:

• compatible with most factory steering wheel audio controls (adapter required)

• built-in MOSFET amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)

• MIXTRAX for a DJ-inspired audio/visual experience with compatible devices

• 10-level dimmer

General:

• RMS Power (CTA-2006): 14 watts

• RMS Power (Manufacturer): 22 watts

• Peak Output: 50 watts

Expandability:

• AUX Input: Front

• Audio/Video Input: N/A

• USB Input: Front

• USB Port Power: 1.5A

• Backup Camera Input: No

• Second Camera Input: No

• Preamp Outputs: 6-channel

• Sub Preamp Outputs: Yes

• Switchable Rear Preamp Outputs: No

• Memory Card Slot: USB memory

Smartphone Control:

• iPhone Compatibility: 5 and newer

• CarPlay: No

• Siri Control: Bluetooth

• Android Control: Yes

• Android Auto: No

• Alexa Voice Control: Yes

Tuner:

• FM Sensitivity: 11 dBf

• European Tuning: No

• Seek/Scan: Seek

• Radio Data System: Yes

File Playback:

• Music File Playback: MP3, WMA, AAC, FLAC, WAV

• High-res Playback: No

Navigation Control:

• Navigation: N/A

• Navigation App Compatible (iOS): N/A

• Navigation App Compatible (Android): N/A

Features & Specs:

• Bluetooth Compatible: Built-in

• Bluetooth Version: 4.0

• Satellite Radio Ready: SiriusXM 3.0

• HD Radio: No

• Video Screen: No

• Preamp Voltage: 4

• Screen Size: N/A

• Screen Type: N/A

• Display Color: Variable

• Key Button Color: Variable

• EQ Bands: 13

• Wireless Remote: Optional

• Steering Wheel Control Compatible: Adapter required

Dimensions:

• Chassis Depth: 6.475 inches

• Chassis Width: 7.015 inches

• Chassis Height: 3.935 inches

• CD receiver (10A fuse)

• Wiring harness

• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)

• Two-sided tape

• 6 Pan head ISO-mount screws (M5 x 8mm)

• 6 Flat-head ISO-mount screws (M5 x 9mm)

• Quick Start Guide

• Warranty Information
