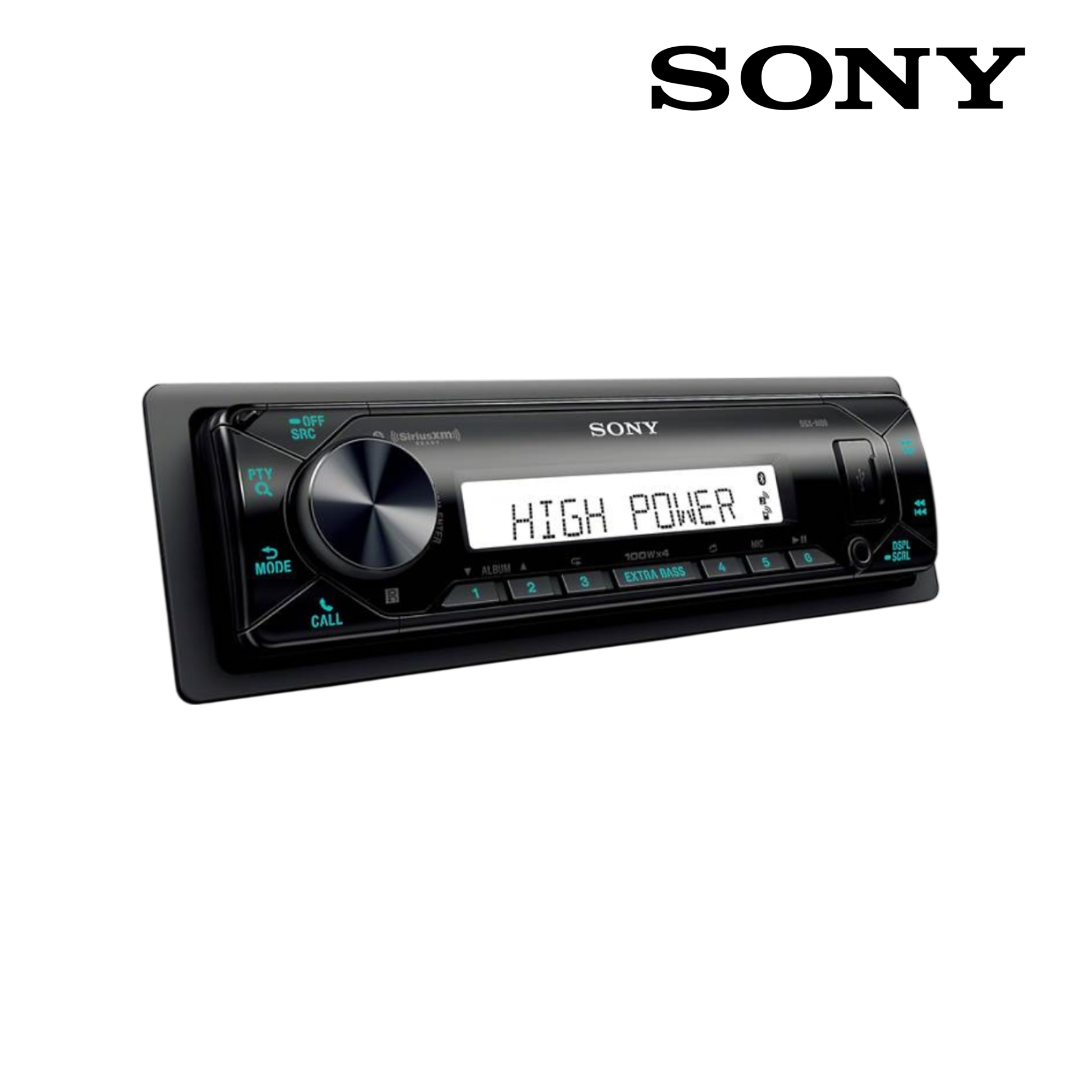

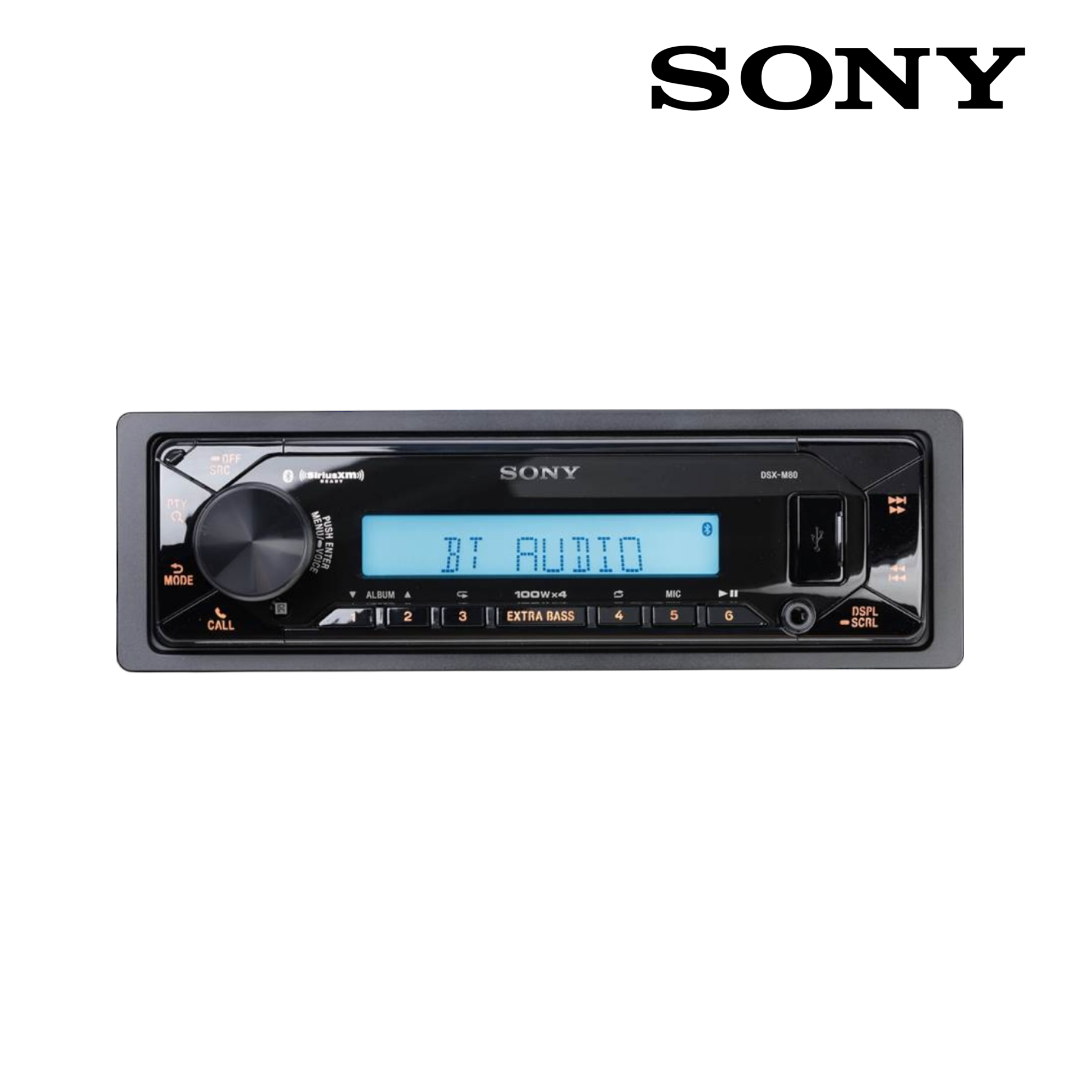

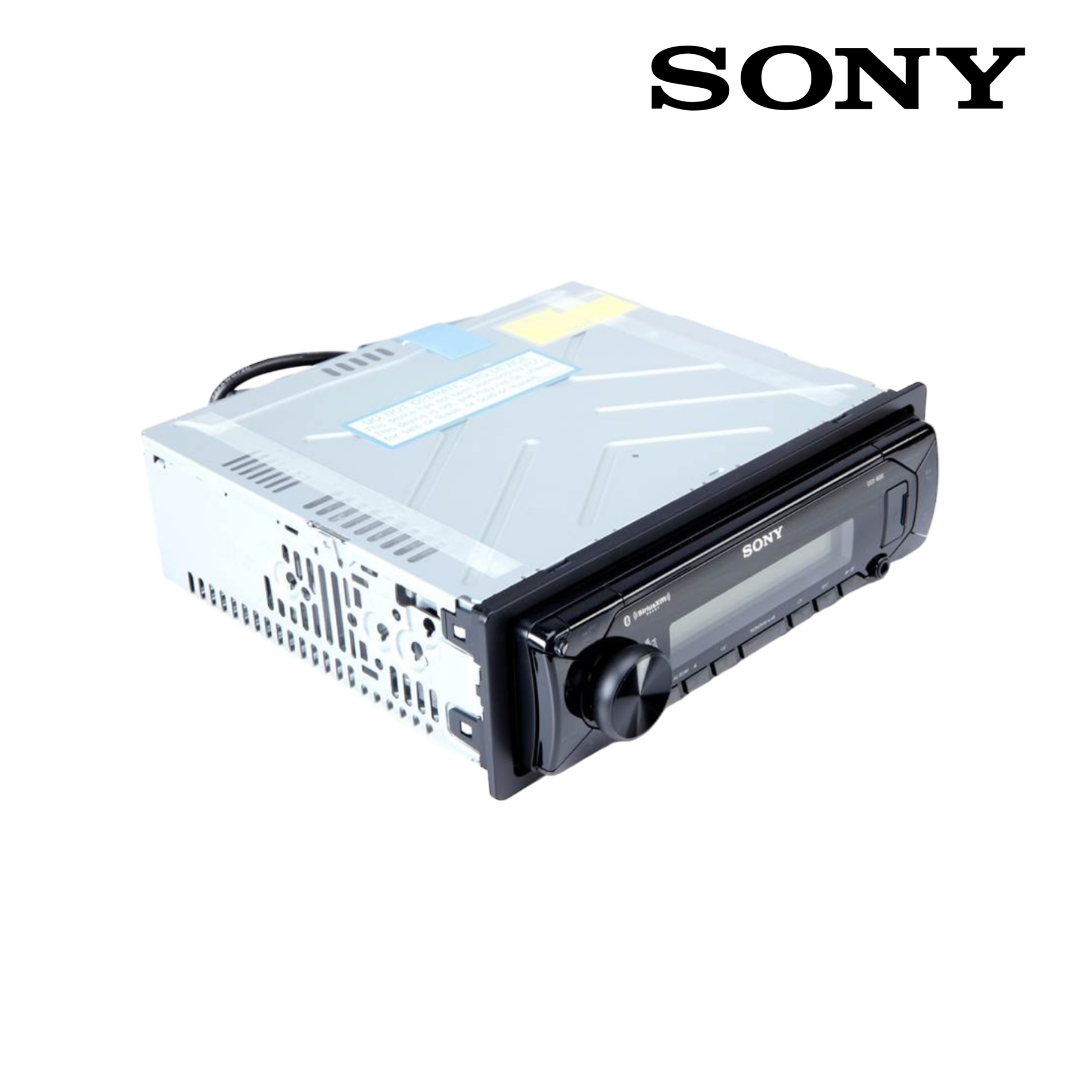

High Power Marine Digital Media Receiver DSX-M80

$377.99

High-power amp for rich, clear sound

  • The four-channel amplifier gives you built-in power previously only available from external amps.

Ready for sun and humidity

  • The UV-resistant finish can handle bright sunlight, and the anti-corrosive coating stands up to salty sea air without fading or cracking.

Customize and control with your smartphone

  • Bring your media receiver and smartphone together, with head unit control over selected apps, and easy vehicle audio setup and customization right from your smartphone.

[ user’s manual ]

High-power amp for rich, clear sound

  • The four-channel amplifier gives you built-in power previously only available from external amps.

Ready for sun and humidity

  • The UV-resistant finish can handle bright sunlight, and the anti-corrosive coating stands up to salty sea air without fading or cracking.

Customize and control with your smartphone

  • Bring your media receiver and smartphone together, with head unit control over selected apps, and easy vehicle audio setup and customization right from your smartphone.

[ user’s manual ]

  • General Specifications

    • RMS Power (CTA-2006): 45 watts

    • RMS Power (Manufacturer): 45 watts

    Expandability

    • AUX Input: Front

    • USB Input: Front/Rear

    • USB Port Power: 1A, 1.5A

    • Backup Camera Input: No

    • Second Camera Input: No

    • Camera Input (Marine): No

    • Preamp Outputs: 6-channel

    • Subwoofer Preamp Outputs: Yes

    • Switchable Rear Preamp Outputs: No

    • Memory Card Slot: USB

    Smartphone Control

    • iPhone Compatibility: iPhone 4S and newer

    • CarPlay: No

    • Siri Control: Via Bluetooth

    • Android Control: Yes

    • Android Auto: No

    • Alexa Voice Control: No

    Tuner

    • FM Sensitivity: 8 dBf

    • European Tuning: No

    • Seek/Scan: Seek

    • Radio Data System (RDS): Yes

    File Playback

    • Supported Audio Formats: MP3, WMA, AAC, FLAC, WAV

    • High-Resolution Playback: No

    Navigation Control

    • Built-in Navigation: No

    • Navigation App Compatibility (iOS): Not specified

    • Navigation App Compatibility (Android): Not specified

    Features & Specs

    • Bluetooth Compatibility: Built-in

    • Bluetooth Version: 3.0

    • Satellite Radio Ready: SiriusXM

    • HD Radio: No

    • Video Screen: No

    • Preamp Voltage: 5 volts

    • Display Color: Variable

    • Key/Button Color: Variable

    • EQ Bands: 10-band EQ

    • Wireless Remote: Yes

    • Steering Wheel Control Compatibility: Adapter required

    Dimensions

    • Chassis Width: 7.165 inches

    • Chassis Height: 2.085 inches

    • Chassis Depth: 6.605 inches

    • Marine digital media receiver (15A fuse)

    • Face

    • Sleeve (installed)

    • Trim ring (installed)

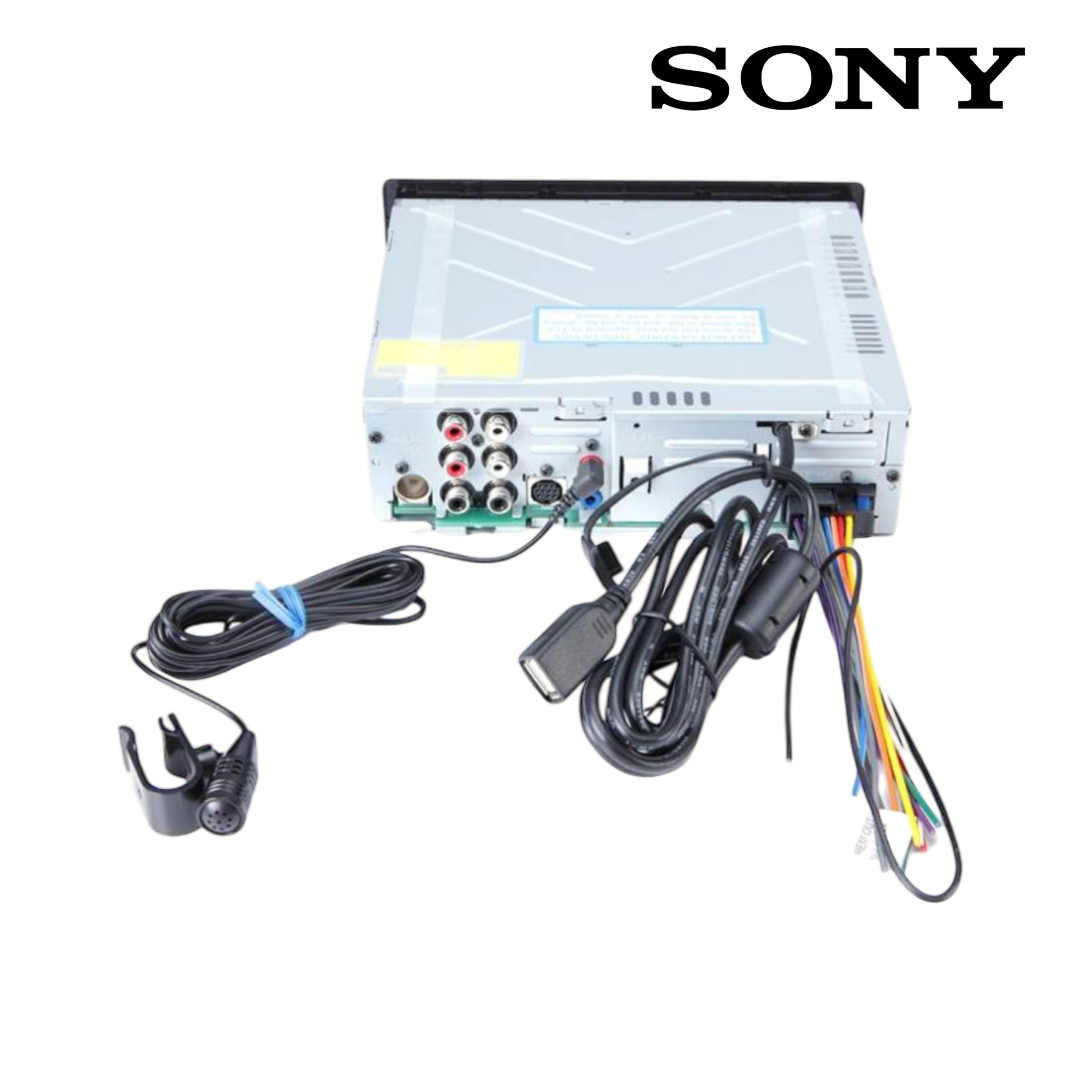

    • Wiring harness

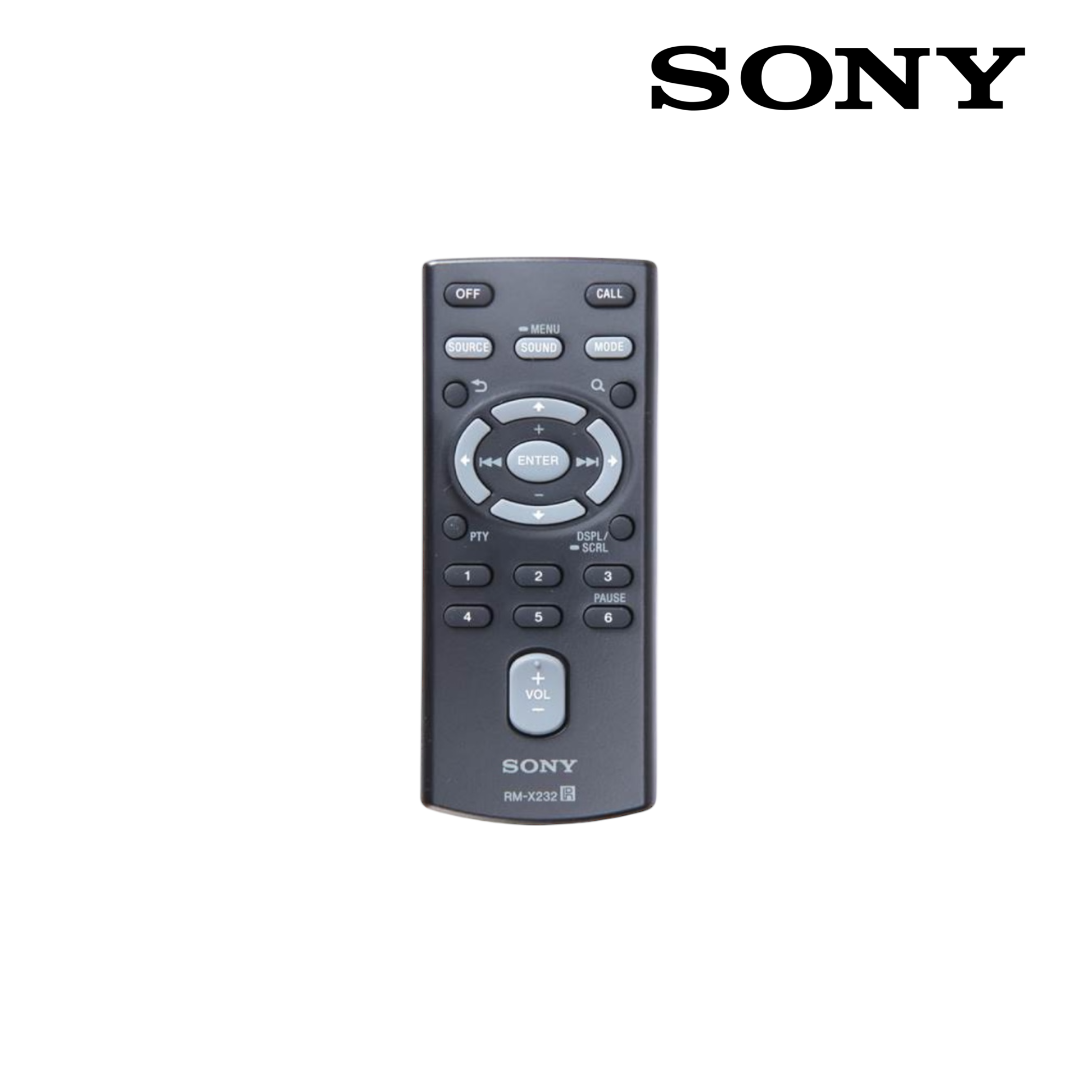

    • Wireless remote control (RM-X232)

    • CR2025 Lithium battery (installed in remote)

    • Microphone w/ bracket (attached 11' cord terminated by a right-angle mono 3.5mm connector)

    • Two-sided tape

    • Rubber cap (for Aux input)

    • 2 Radio removal tools

    • 4 Countersunk ISO-mount screws

    • Face fixing screw

    • Machine screw

    • Self-tapping screw

    • Backstrap

    • Operating Instructions

    • Face fixing screw note

    • "About the supplied cap (AUX)" note

    • Warranty Information
