CS Series 6-1/2" component speaker system 46CSS654

$229.99

46CSS654 CS-Series 6-1/2-inch Component 4Ω Speakers with 0.75inch tweeters

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

[ user’s manual ]

46CSS654 CS-Series 6-1/2-inch Component 4Ω Speakers with 0.75inch tweeters

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

[ user’s manual ]

    • component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers

    • 6-1/2" polypropylene woofer with polyester foam surround

    • 3/4" titanium dome tweeter

    • external crossover network with 3 tweeter levels (0, +3, +6 dB)

    • handles up to 100 watts RMS (300 watts peak power)

    • frequency response: 35-21,000 Hz

    • sensitivity: 90 dB

    • woofer top-mount depth: 1-13/16"

    • grilles included

  • 🔧 General

    • Speaker Size: 6-1/2"

    • Driver Design: 2-way component system

    • Woofer Design: Cone

    • Woofer Material: Polypropylene

    • Woofer Surround: Ribbed Polyester Foam

    • Tweeter Design: 3/4" Dome

    • Tweeter Material: Titanium

    • Impedance: 4 ohms

    • Weather-Resistant: No

    • Grilles Included: Yes – Black, steel mesh with plastic frame

    📊 Performance Specs

    • Sensitivity (1W @ 1 meter): 90 dB

    • Frequency Response: 35 Hz – 21 kHz

    • RMS Power Handling: 100 watts

    • Peak Power Handling: 300 watts

    📐 Mounting Dimensions

    • Top-Mount Depth: 1-13/16"

    • Bottom-Mount Depth: 2-3/16"

    • Cutout Diameter: 4-15/16"

    • Mounting Height: 0.413"

    • Frame Width/Length: 6.235" x 6.235"

    🎛️ Tweeter Mounting Options

    • Flush Mount:

      • Mounting Height: 0.275"

      • Depth: 0.548"

      • Cutout Diameter: 1.570"

      • Frame Diameter: 1.968"

    • Angled Flush Mount (≈10°):

      • Mounting Height: 0.662"

      • Depth: 0.705"

      • Cutout Diameter: 1.685"

      • Frame Diameter: 1.968"

    • Angled Surface Mount (≈45°):

      • Mounting Height: 1.928"

      • Depth: 0.491" (screw depth)

      • Frame Width: 1.887"

      • Frame Length: 2.110"

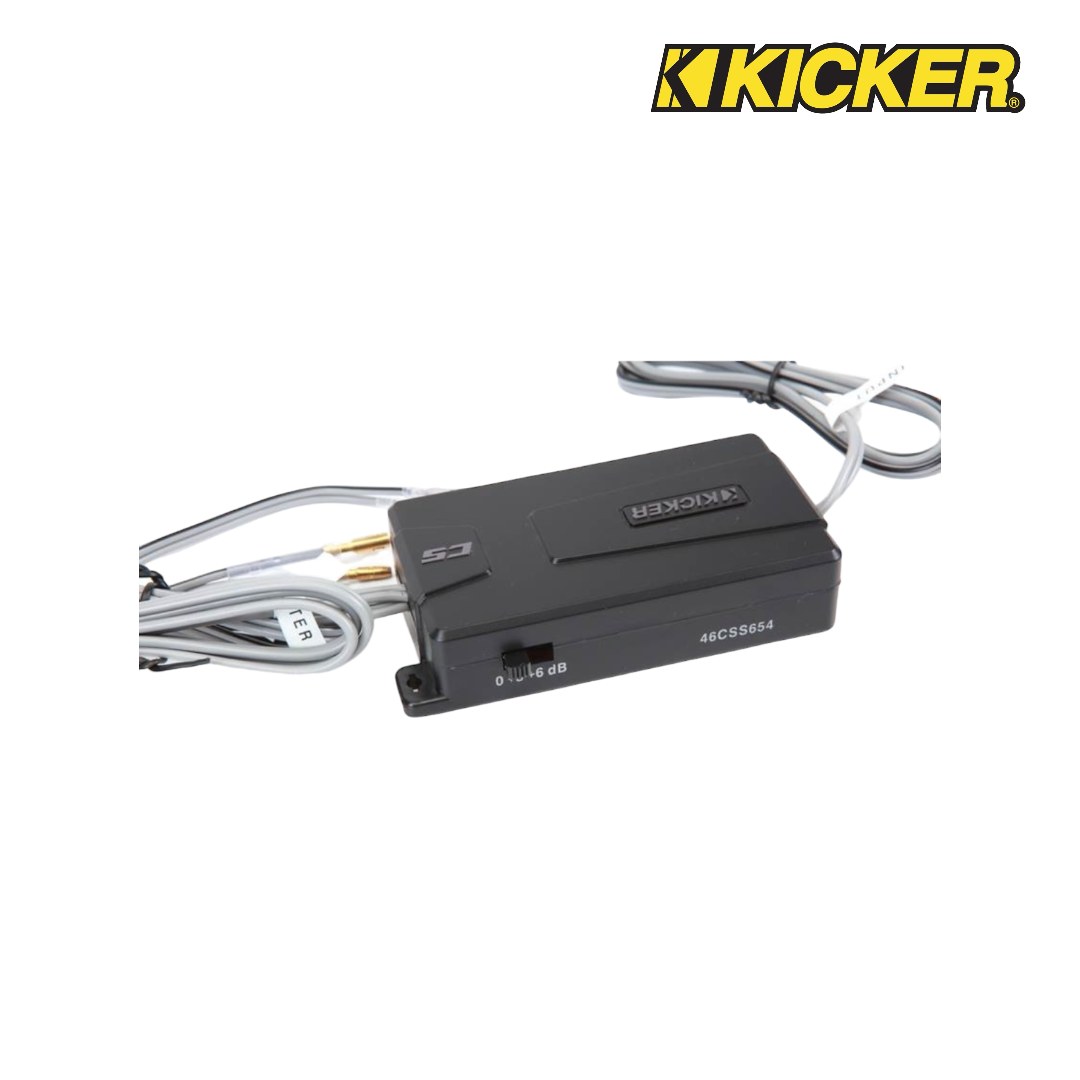

    🔁 Crossovers

    • Included: Yes – Passive 2-way crossover networks

    • Crossover Frequency: 4000 Hz

    • Crossover Slope: 12 dB/octave (high-pass and low-pass)

    • Tweeter Output Level Adjustment: 0 dB / +3 dB / +6 dB

    • Input/Output Wiring: Pre-attached; includes 35" leads for woofer and tweeter

    • Crossover Dimensions:

      • Length: 4.02" (4.67" with mounting flange)

      • Width: 2.29" (4.47" including level switch)

      • Height: 1.01"

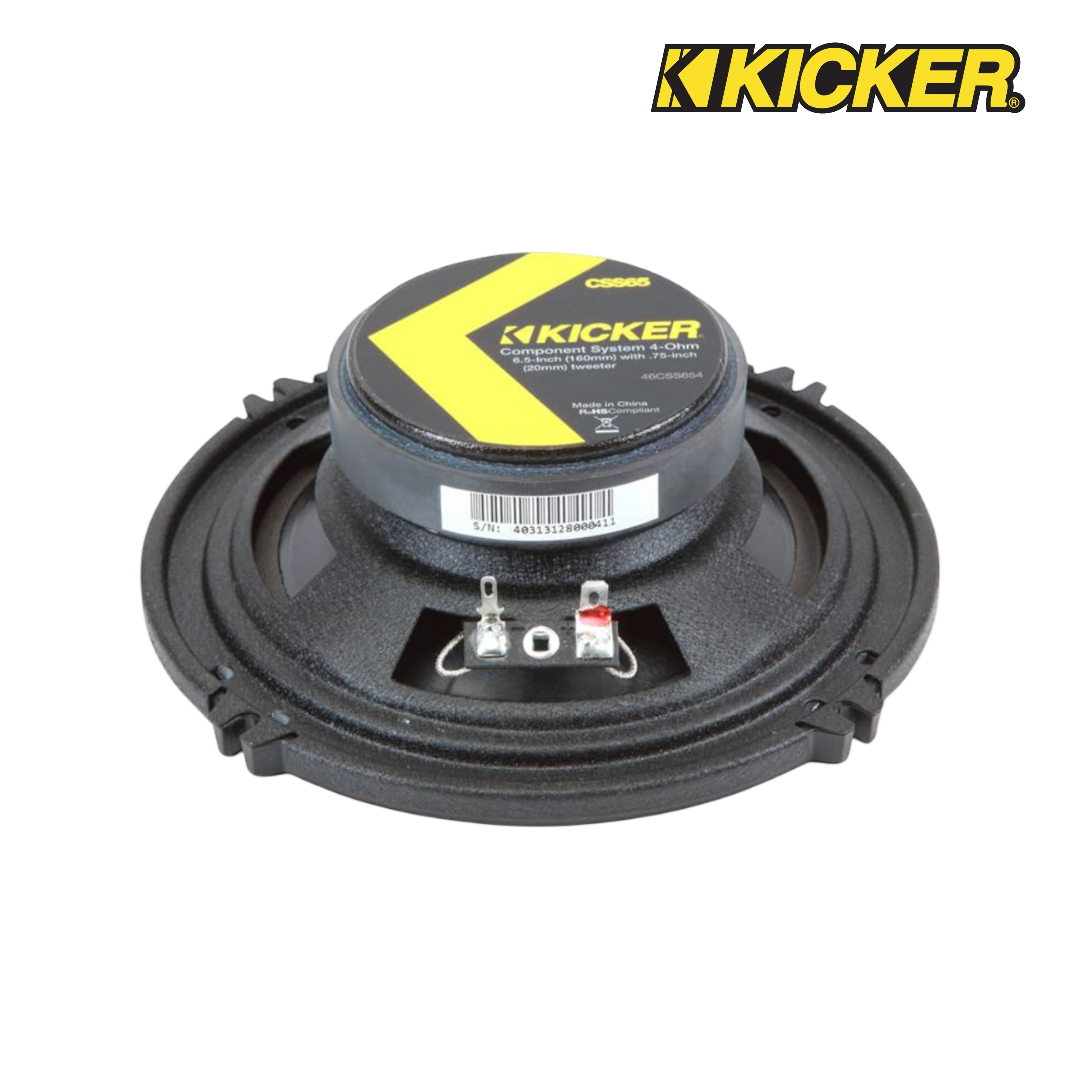

    • Two woofers

    • 2 Woofer grilles

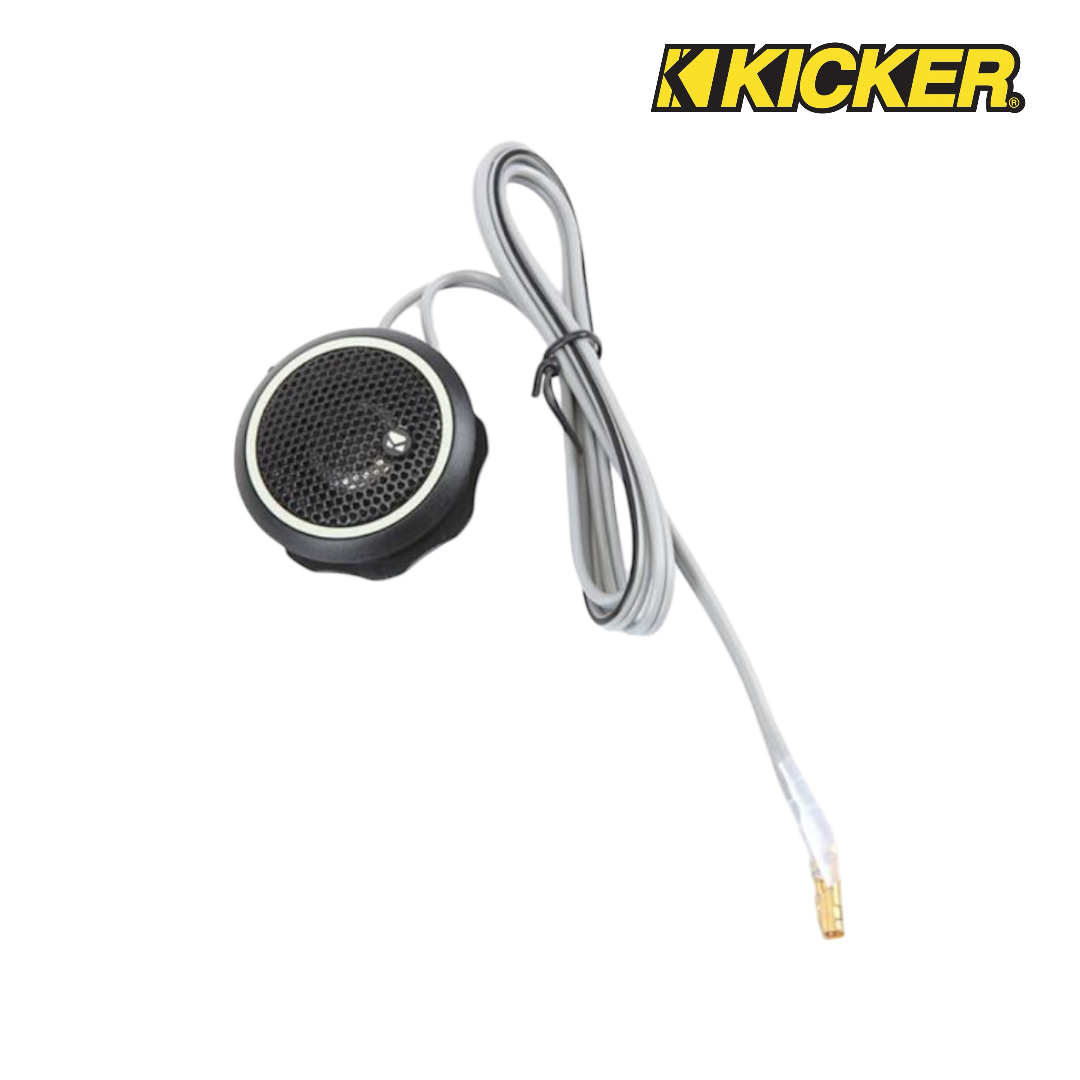

    • Two tweeters (each with 36" Wire attached)

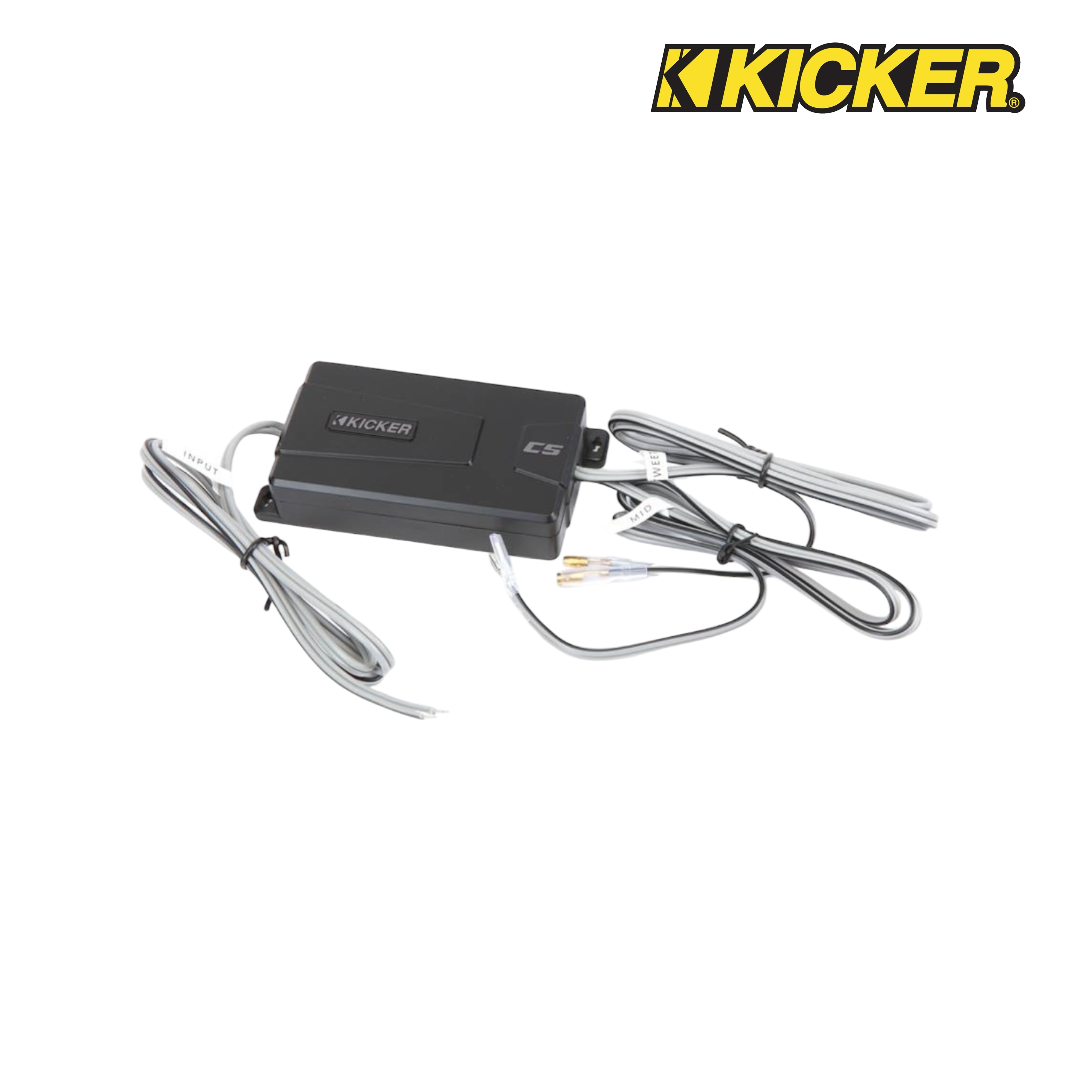

    • 2 Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)

    • 2 Flush mount tweeter rings

    • 2 Short tweeter mounting nuts

    • 2 Long tweeter mounting nuts

    • 2 Back angled tweeter rings

    • 2 Front angled tweeter rings

    • 2 Angled surface mount tweeter housings

    • Twelve 1" Screws

    • Four 5/8" Screws

    • Four 7" Zip-ties

    • 4 Red plastic wire caps

    • Owner's manual (English/ Spanish/ German/ French)
