10inch Powered Hideaway Subwoofer 360 Watts Max 51HS10
The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame. KICKER innovates once again, with FIT+™ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 volt to as high as 40 volts (400 watts at 4Ω) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter.
The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame. KICKER innovates once again, with FIT+™ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 volt to as high as 40 volts (400 watts at 4Ω) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter.
The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame. KICKER innovates once again, with FIT+™ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 volt to as high as 40 volts (400 watts at 4Ω) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter.
-
🔧 General
Enclosure Type: Sealed
Finish Material: Aluminum
Grille: Metal Mesh
Connector Type: Harness
Quick-Disconnect Plug: Yes
Bi-amp Inputs: N/A
Woofer Size: 10"
Woofer Material: Not specified
Passive Radiator: No
📏 Dimensions
Width: 9-7/8"
Height: 3-1/4"
Depth: 15"
📊 Specifications
Frequency Response: 25 Hz – 120 Hz
Amplifier Power (RMS): 180 Watts
Maximum Power Handling: 360 Watts
Crossover Point: 50 – 120 Hz
Sensitivity: Not specified
Impedance: Not specified
Second Voice Coil Impedance: N/A
-
10" Amplified subwoofer
Wiring harness (17' Power input/ 8' Speaker level input/ 2' Ground/ 2' Remote turn-on)
12" Power wire with in-line fuse holder and installed 15A ATO fuse
Two 15A ATO fuses (1 installed in the chassis of the unit/1 spare)

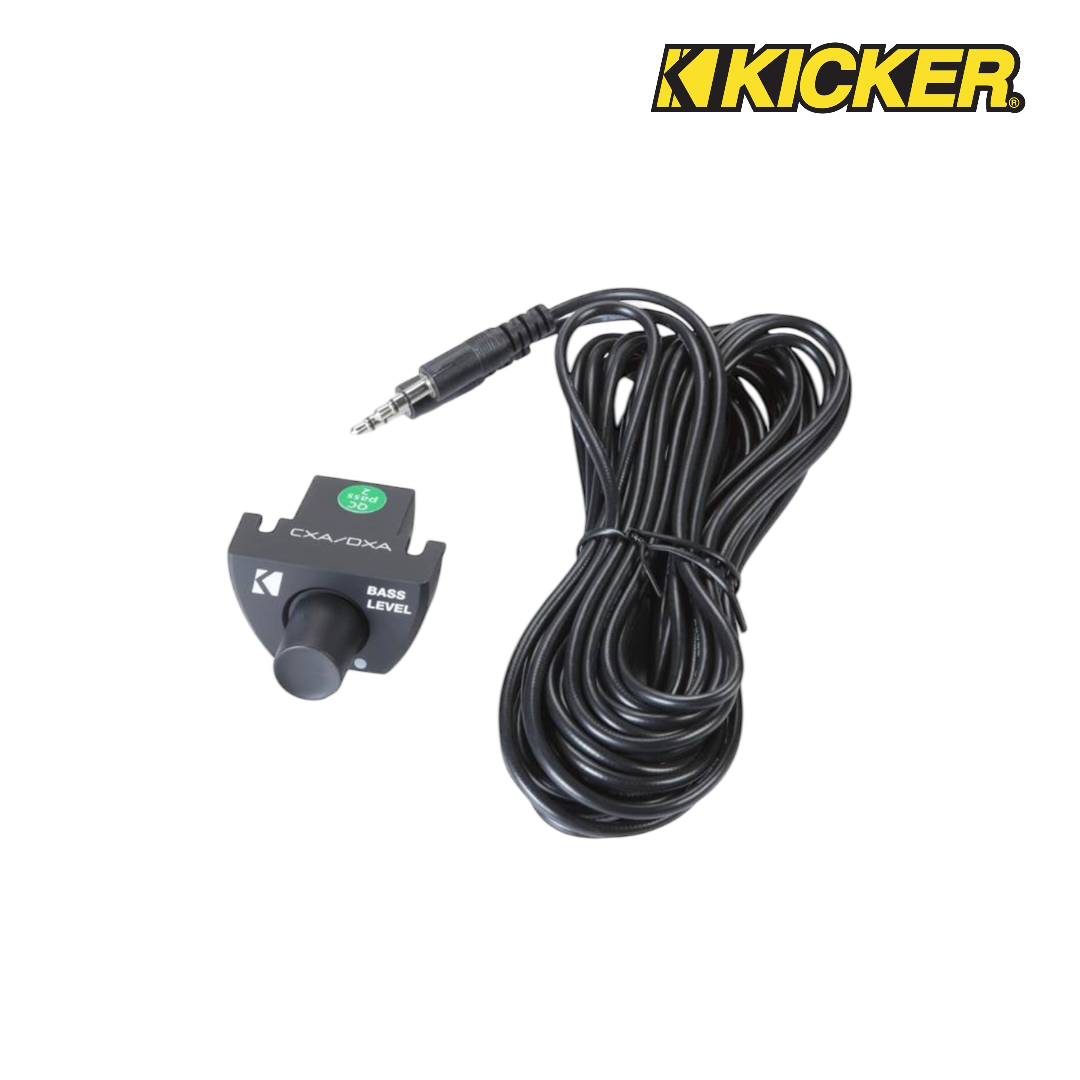

Remote bass level control
19.5' Remote cable (3.5mm TRS plugs on both ends)
4 Mounting brackets
Four 3/4" pan head screws
Eight 1/4" counter-sunk screws
Two 3/8" screws
Two 10-12 gauge crimp-on ring terminals
One 10-12 Gauge butt connector
Owner's manual (En/ Sp/ Ge/ Fr)
