AudioControl TXFF15D10

$1,399.99 $1,549.99

Custom sealed enclosure with two 10" subwoofers — fits select 2015-up Ford trucks

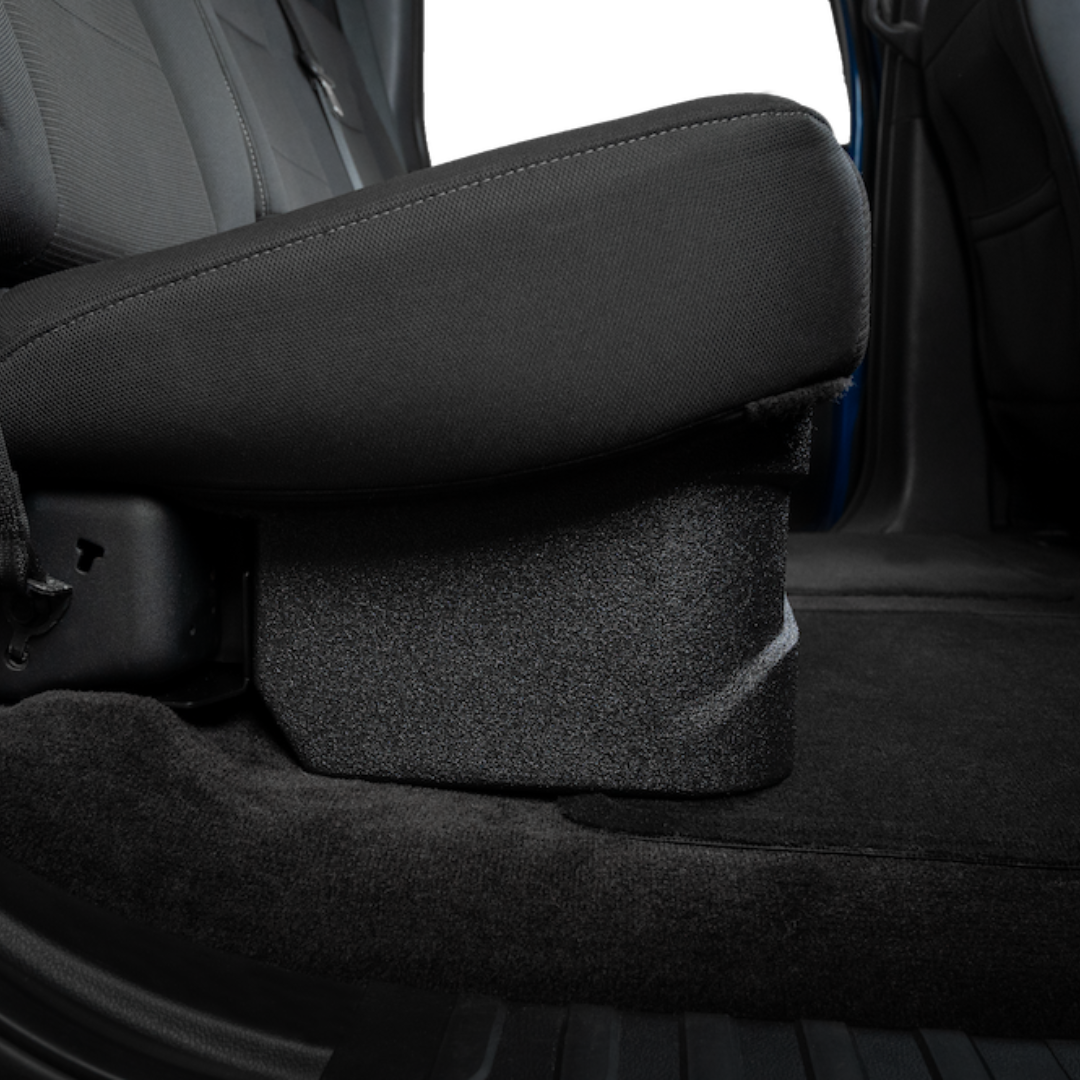

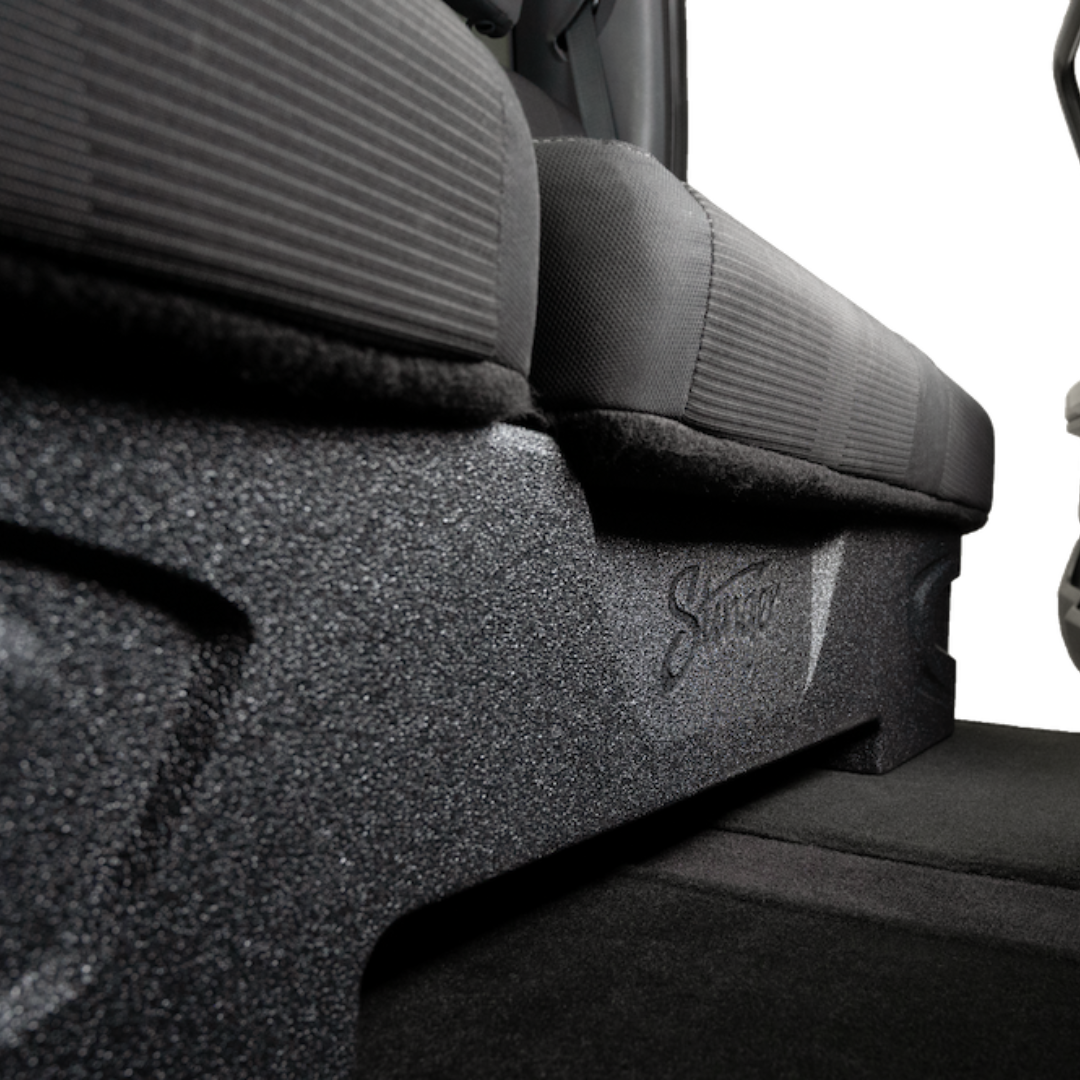

Designed for seamless integration beneath your Ford F-150’s rear seat, our Dual 10” Sealed Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Space Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.

Custom sealed enclosure with two 10" subwoofers — fits select 2015-up Ford trucks

Designed for seamless integration beneath your Ford F-150’s rear seat, our Dual 10” Sealed Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Space Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.

    • down-firing sealed enclosure with two 10" Spike Series subwoofers

    • heavy-duty fiberglass construction with Roadkill Armor and EPM coating

    • poly-fiber fill

    • impedance: 2 ohms

    • power handling: 800 watts RMS (1200 watts peak)

    • frequency response: 20-250 Hz

    • sensitivity: 87 dB

    • dimensions: 51"W x 8.75"H x 11.75"D

    • powder-coated steel grilles included

  • The AudioControl TXFF15D10 Dual 10" Under Seat Sealed Subwoofer Enclosure can be installed in the following vehicles:

    • 2015+ Ford F-150 Super Crew

    • 2017+ Ford F-250/350 Super Duty Crew Cab

  •  The custom AudioControl TXFF15D10 sealed enclosure is constructed of heavy-duty fiberglass with internal bracing, providing excellent sound dampening properties and reduced resonance. The rugged enclosure features a heat-bonded EPM (Elastomeric Polyurethane Molecule) layer and Roadkill-Armor coating for added durability, UV protection, and weather-resistance. The TXFF15D10 enclosure is also resistant to chemicals, stains, scratches, and cracking.

  • The AudioControl TXFF15D10 is loaded with two Space Series 10" SPC-10S4 subwoofers. Both drivers feature a fiber matrix paper cone, with mica coating, and a durable isoprene polymer surround mounted to a powder-coated frame. The heavy-duty motor system features a 2.5" diameter voice coil with a 3-layer, high-temperature former for maximum efficiency. The two SPC-10S4 subwoofers are protected by removable metal-mesh grilles.

  • The two 4-ohm subwoofers are internally parallel-wired for a 2-ohm load at the single set of input terminals. The enclosure can handle 400-800W RMS (800W recommended); 1200W peak power.

  • The TXFF15D10 features two connection methods:

    • Spring Posts: A pair of spring posts can accept speaker wire up to 10-gauge in size.

    • Quick-Plug Harness: A removable 6" 2-pin harness (XT-90), with bare-ended 12-gauge wires, provides a quick-connection method that can easily be plugged and unplugged from the enclosure.

  • AudioControl TXFF15D10 owner's manual

    • Custom subwoofer enclosure loaded with two SPK-10S4 10" subwoofers

    • 2 Mounting brackets (installed)

    • Two M6x75mm bolts (installed)

    • 6" 2-Pin input harness

    • Installation instructions
