AudioControl TXGM19D10

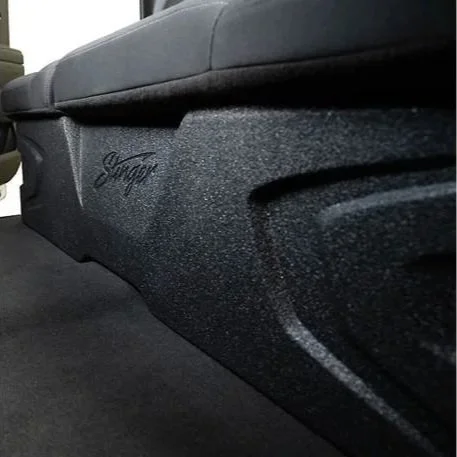

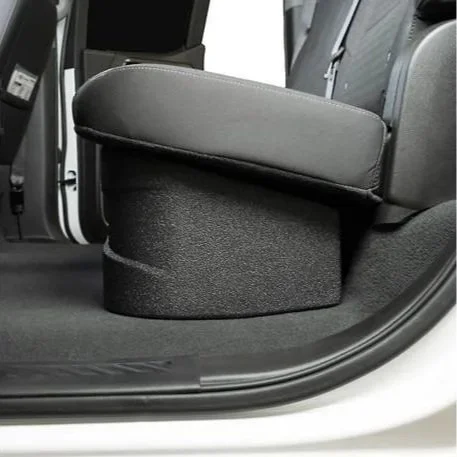

Custom ported enclosure with two 10" subwoofers — fits select 2019-up Chevrolet and GMC Crew Cab trucks
Designed for seamless integration beneath your Silverado or Sierra’s rear seat, our Dual 10” Vented Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Spike Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.
Custom ported enclosure with two 10" subwoofers — fits select 2019-up Chevrolet and GMC Crew Cab trucks
Designed for seamless integration beneath your Silverado or Sierra’s rear seat, our Dual 10” Vented Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Spike Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.
Custom ported enclosure with two 10" subwoofers — fits select 2019-up Chevrolet and GMC Crew Cab trucks
Designed for seamless integration beneath your Silverado or Sierra’s rear seat, our Dual 10” Vented Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Spike Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.
-
down-firing ported enclosure with two 10" Spike Series subwoofers
heavy-duty fiberglass construction with Roadkill Armor and EPM coating
poly-fiber fill
total impedance: 2 ohms
power handling: 1000 watts RMS (1400 watts peak)
frequency response: 20-250 Hz
sensitivity: 88 dB
dimensions: 51.88"W x 10.38"H x 14.25"D
powder-coated steel grilles included
-
The AudioControl TXGM19D10 Dual 10" Under Seat Sealed Subwoofer Enclosure can be installed in the following vehicles:
2019+ Chevrolet Silverado/GMC Sierra 1500 Crew Cab
2020+ Chevrolet Silverado/GMC Sierra 2500/3500 Crew Cab
-
The custom AudioControl TXGM19D10 sealed enclosure is constructed of heavy-duty fiberglass with internal bracing, providing excellent sound dampening properties and reduced resonance. The rugged enclosure features a heat-bonded EPM (Elastomeric Polyurethane Molecule) layer and Roadkill-Armor coating for added durability, UV protection, and weather-resistance. The TXGM19D10 enclosure is also resistant to chemicals, stains, scratches, and cracking.
-
The AudioControl TXGM19D10 is loaded with two Spike Series 10" SPK-10S4 subwoofers. Both drivers feature a fiber matrix paper cone, with mica coating, and a durable isoprene polymer surround mounted to a powder-coated frame. The heavy-duty motor system features a 2.5" diameter voice coil with a 3-layer, high-temperature former for maximum efficiency. The two SPK-10S4 subwoofers are protected by removable metal-mesh grilles.
-
The two 4-ohm subwoofers are internally parallel-wired for a 2-ohm load at the single set of input terminals. The enclosure can handle 600-1000W RMS (1000W recommended); 1400W peak power.
-
The TXGM19D10 features two connection methods:
Spring Posts: A pair of spring posts can accept speaker wire up to 10-gauge in size.
Quick-Plug Harness: A removable 6" 2-pin harness (XT-90), with bare-ended 12-gauge wires, provides a quick-connection method that can easily be plugged and unplugged from the enclosure.
-
AudioControl TXGM19D10 owner's manual
Custom subwoofer enclosure loaded with two SPK-10S4 10" subwoofers
2 Mounting brackets
Two M6x75mm bolts (installed)
1 Nut
1 Flat washer
6" 2-Pin input harness
Installation instructions
